Description

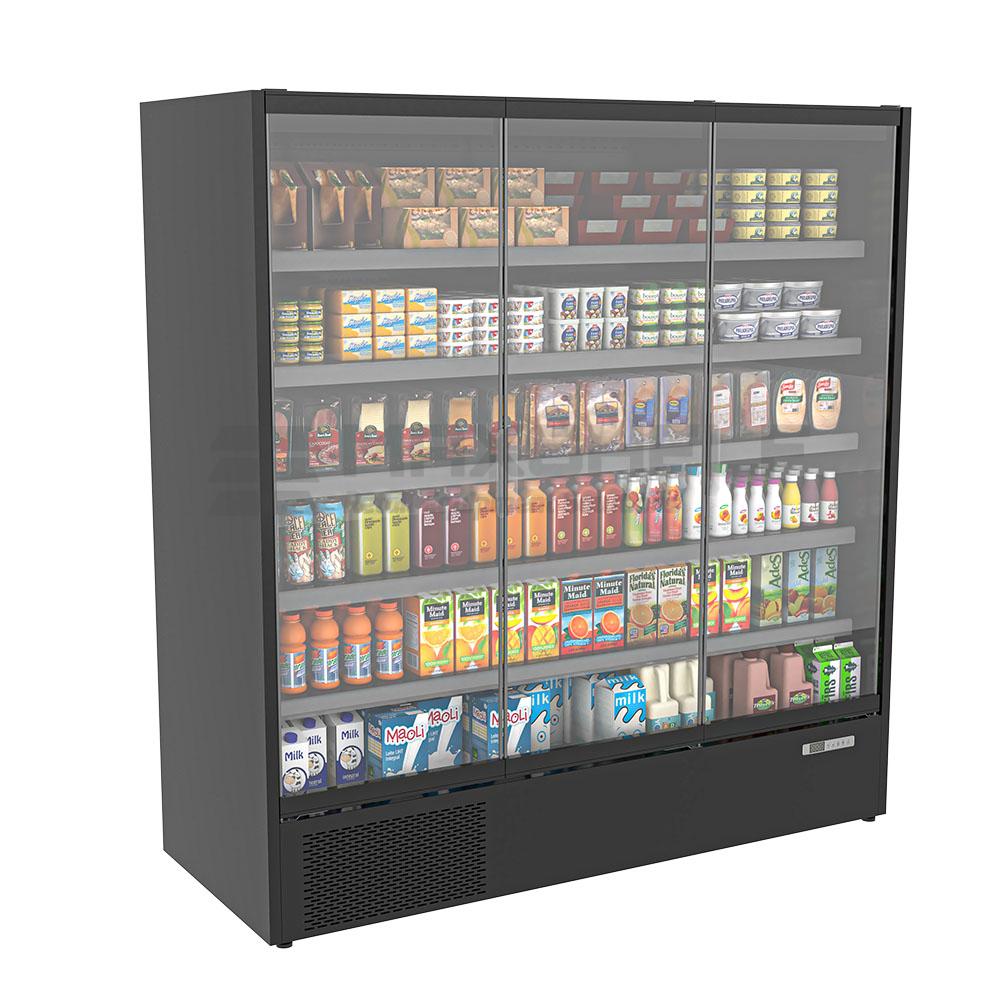

Vmax Triple Glass Door Upright Chiller
Premium Commercial Display Refrigeration | 2060mm x 1935mm x 740mm
The Vmax Triple Glass Door Chiller is the ultimate solution for large-scale retail display. Featuring a striking Black External Finish and internal Solid Mirror side panels, this unit is engineered for visual impact and high-volume performance. Operating within the M1 Temperature Range (-1°C to +5°C) and achieving an impressive Energy Class B rating, it provides reliable, fan-assisted cooling while keeping operational costs low.
Performance & Efficiency

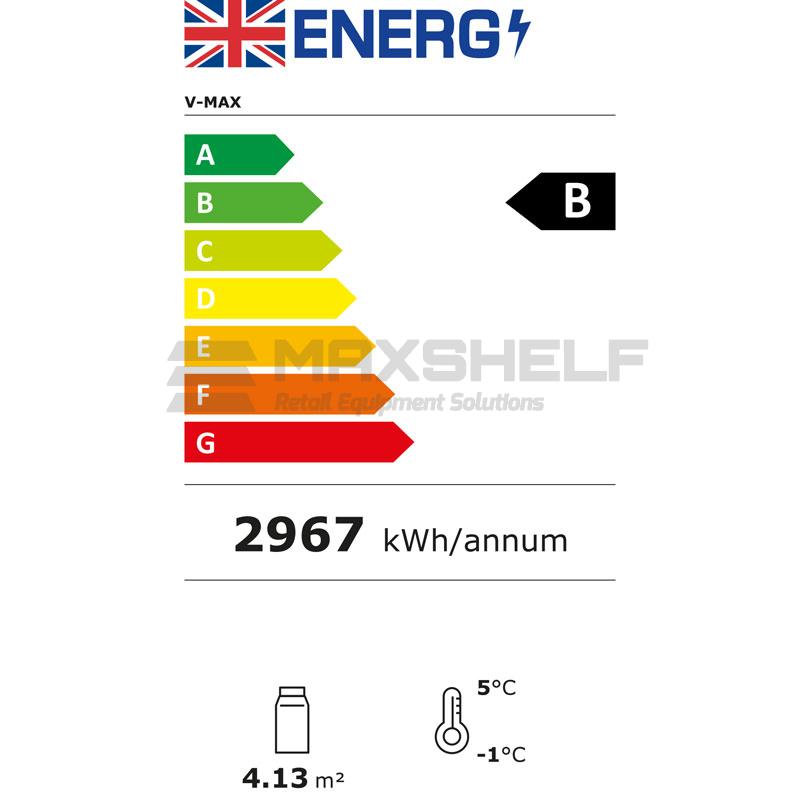

| Energy Rating | Class B |
| Temperature Range | M1 (-1°C to +5°C) |
| Refrigerant | R290 (135g x2) |
| Cooling Type | Ventilated (Fan Assisted) |
| Annual Consumption | 2967 kWh/Annum |
| Power Input | 980W / 5.8A |
Capacity & Display

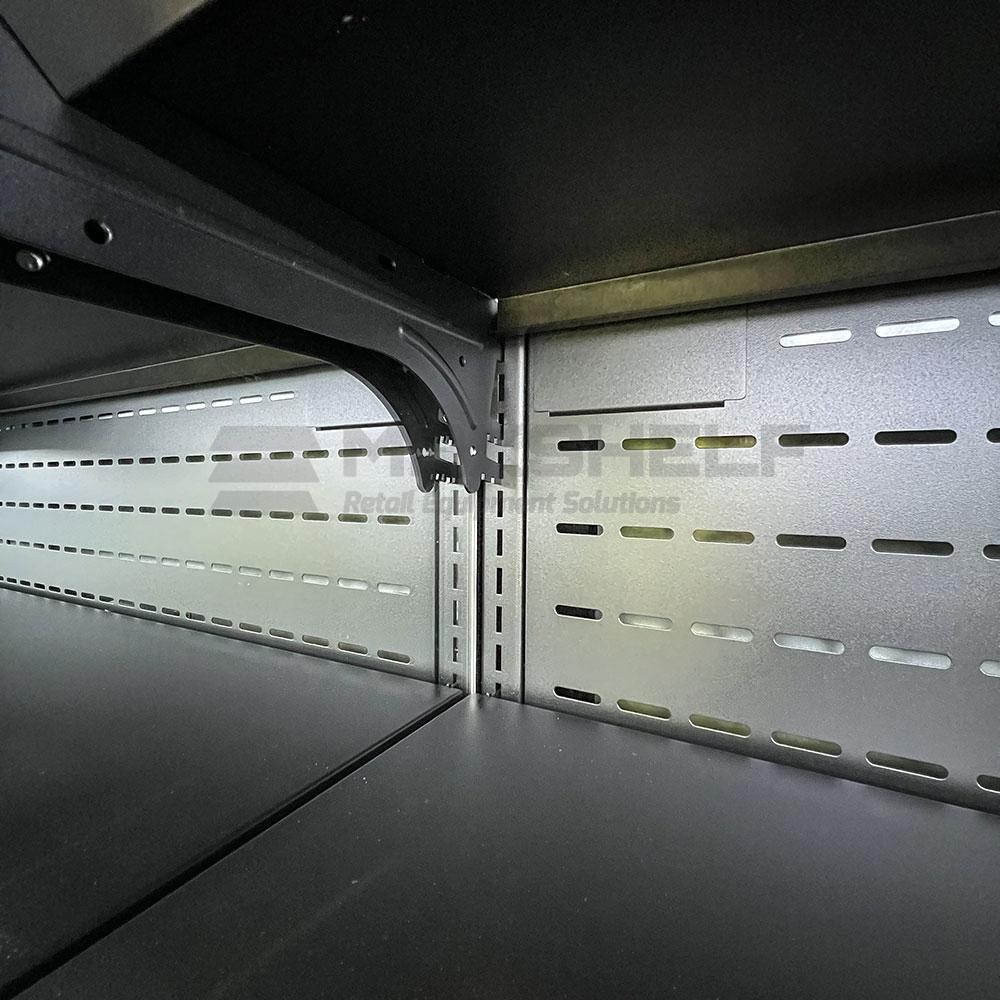

| Shelving System | 5 Layers (Adjustable) |
| Shelf Tilting | 0° / 7° / 14° |

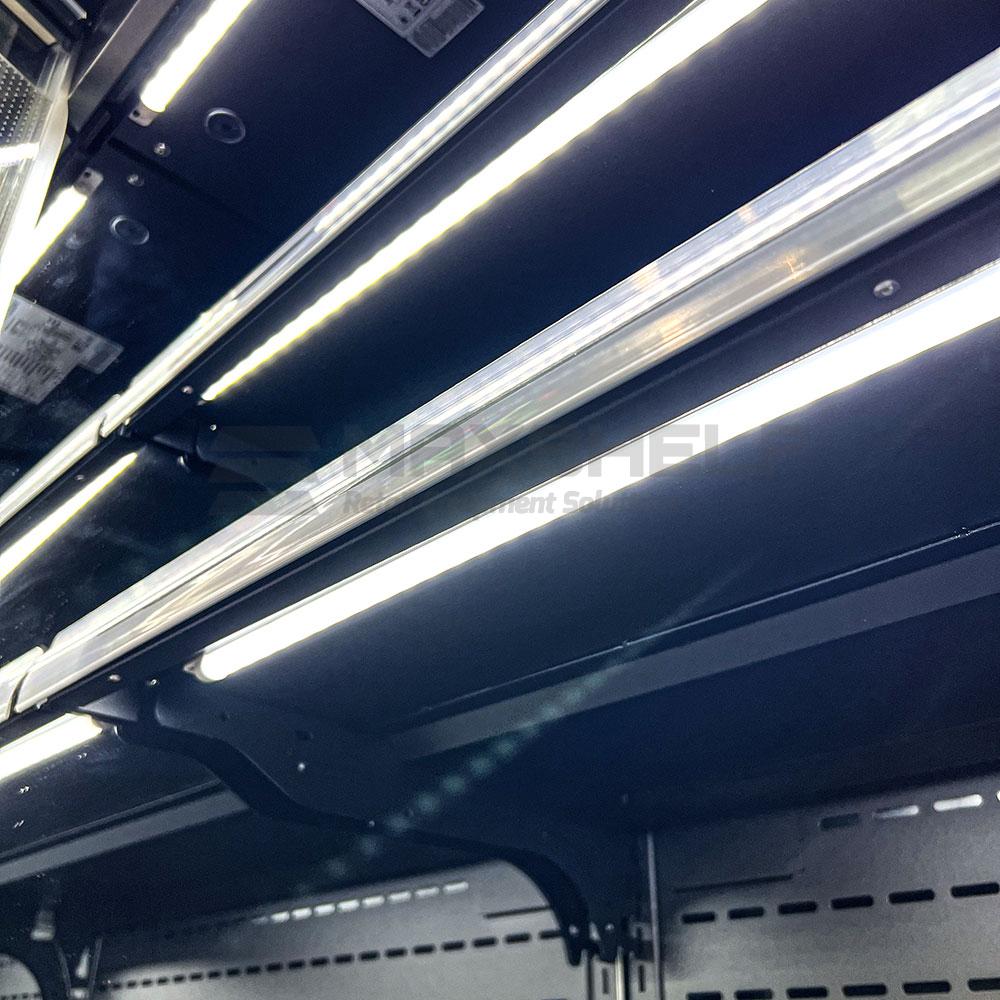

| Lighting | Individual Under-Shelf LED |
| Net Volume | 1147 Litres |
| Display Area | 4.05 ㎡ (TDA) |
| Controller | Electronic Precision |
Dimensions & Logistics
External (mm)
2060(H) x 1935(W) x 740(D)
Internal (mm)
1540(H) x 1875(W) x 450(D)
Net Weight
370 KG
Advanced Merchandising: Each shelf is equipped with dedicated LED lighting to eliminate shadows, combined with a black interior that makes product packaging “pop.” The automatic defrost system and Climate Class 3 certification ensure peak performance even in busy ambient environments up to 25°C.
