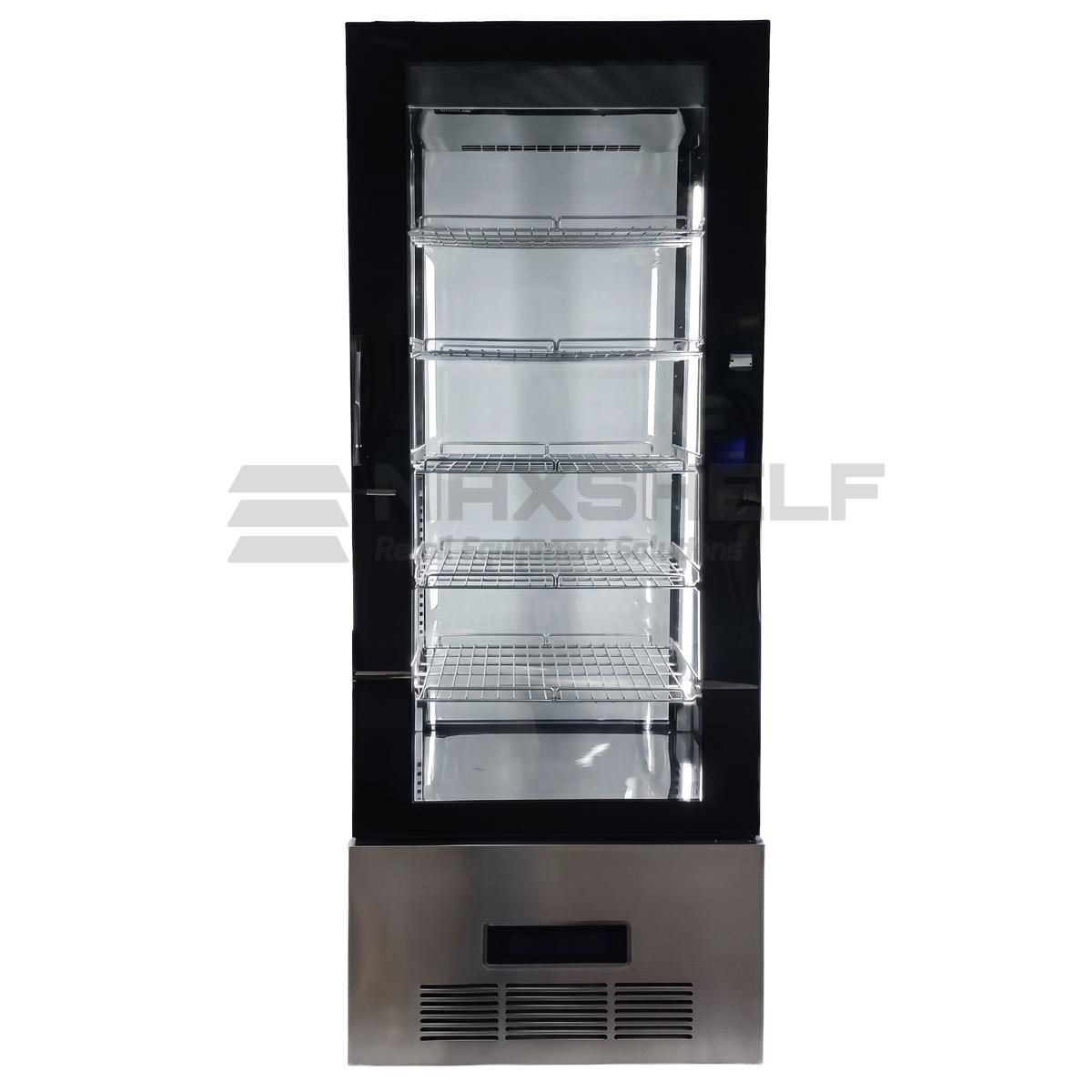

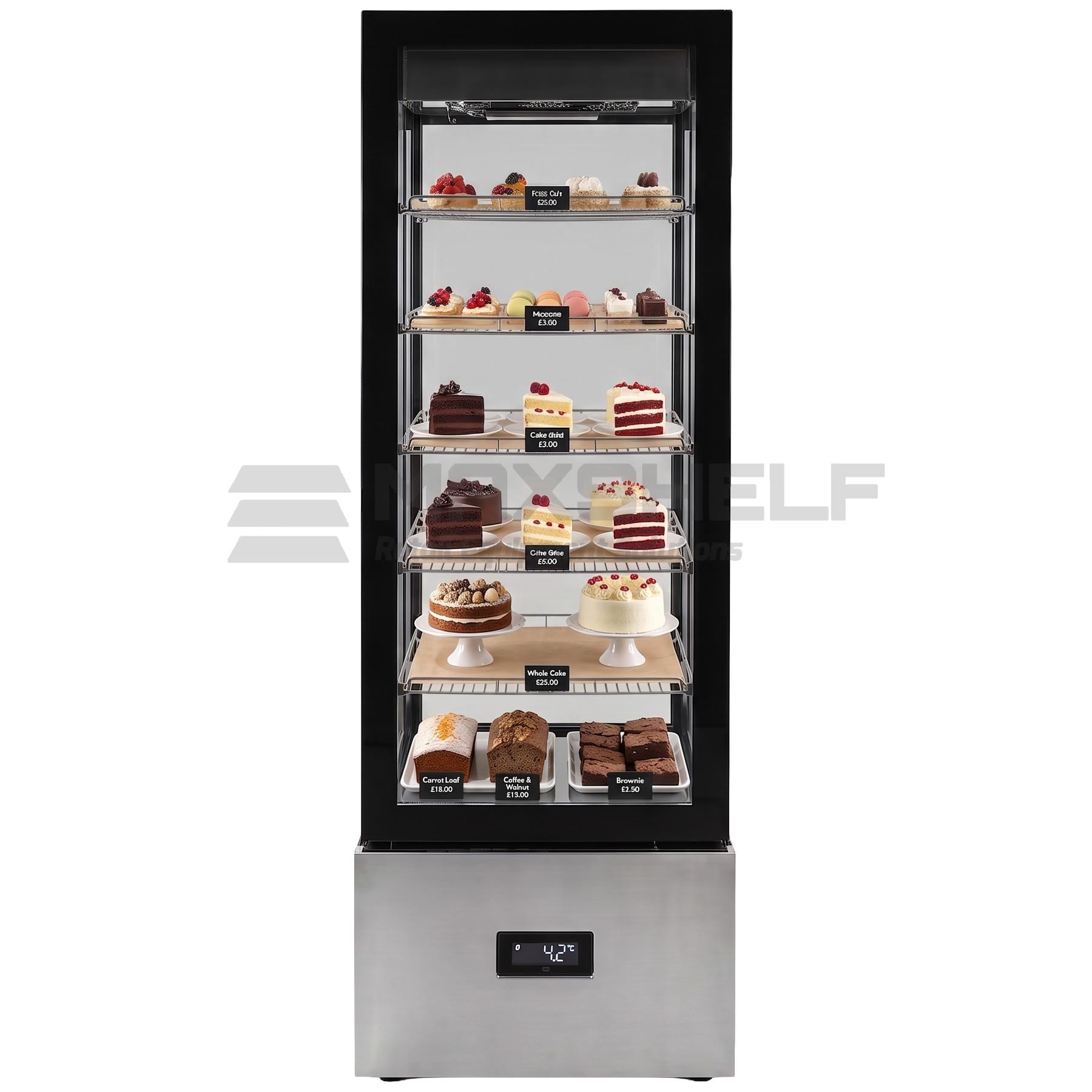

Commercial Upright Chilled Display Case 5 Shelves

The Commercial Upright Chilled Display Case is a slim, tall glass-fronted chiller designed for retail and hospitality environments where floor space is limited but chilled product visibility is essential. Five adjustable chrome wire shelves rise through a fully glazed cabinet — glass front door plus glass side panels — giving customers a clear view of the contents from three directions, while vertical LED strip lighting along both interior sides illuminates every shelf level evenly. A top-mounted evaporator delivers cooling from above, allowing cold air to fall naturally through all five levels for consistent temperature distribution without the shelf-to-shelf variation common in bottom-cooled cabinets. At just 610mm wide and 618mm deep, the cabinet occupies a footprint smaller than most under-counter units while providing 1925mm of vertical display height.

Top Evaporator, Wire Shelves — Even Cooling Through Every Level

The combination of a top-mounted evaporator and open wire shelving is what makes this cabinet perform consistently across its full 1925mm height. Cold air is denser than warm air and falls naturally — so cooling from the top means the air moves down through the cabinet under its own weight rather than needing to be forced upward. The open wire shelves allow that airflow to pass through each level unobstructed, rather than being blocked by solid glass or steel shelving that traps cold air above and leaves the lower levels warmer. The result is a cabinet that holds temperature evenly from the top shelf to the bottom, which matters particularly for a tall, narrow cabinet where a bottom-cooled design would otherwise produce a noticeable temperature gradient. Wire shelves also allow product to be seen from all sides rather than only from the front, and the vertical LED strips ensure that every level is well lit rather than just the shelf immediately below a top-mounted lamp.

Key Features

• ✔ 5 adjustable chrome wire shelves – open construction for full air circulation; reposition to suit product height
• ✔ Top-mounted evaporator – cooling from above; cold air falls naturally through all five shelf levels
• ✔ Glass front door and glass side panels – three-sided product visibility; full view of contents from any approach angle
• ✔ Vertical LED strip lighting – illuminates every shelf level evenly rather than only the upper shelves
• ✔ Digital temperature control – front-mounted display and controller on the stainless base panel
• ✔ Slim 610mm footprint – narrower than most under-counter units; fits beside counters, in service areas and against wall runs
• ✔ 1925mm display height – substantial vertical capacity; visible above surrounding counter and shelving height
• ✔ Stainless steel base cabinet – hygienic, hard-wearing plinth housing the compressor and controls
• ✔ Black glazed frame – contemporary, premium finish suited to café, deli and hospitality interiors

Technical Specifications

Dimensions
