Description

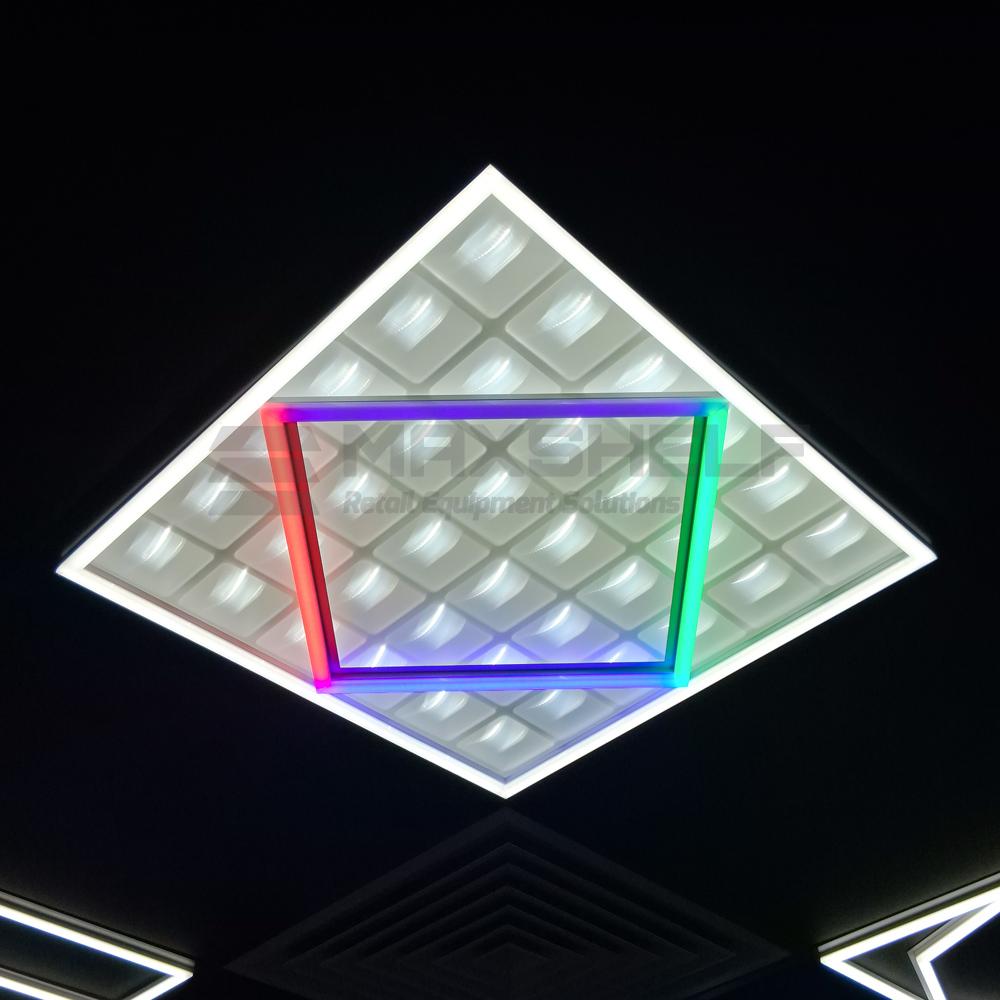

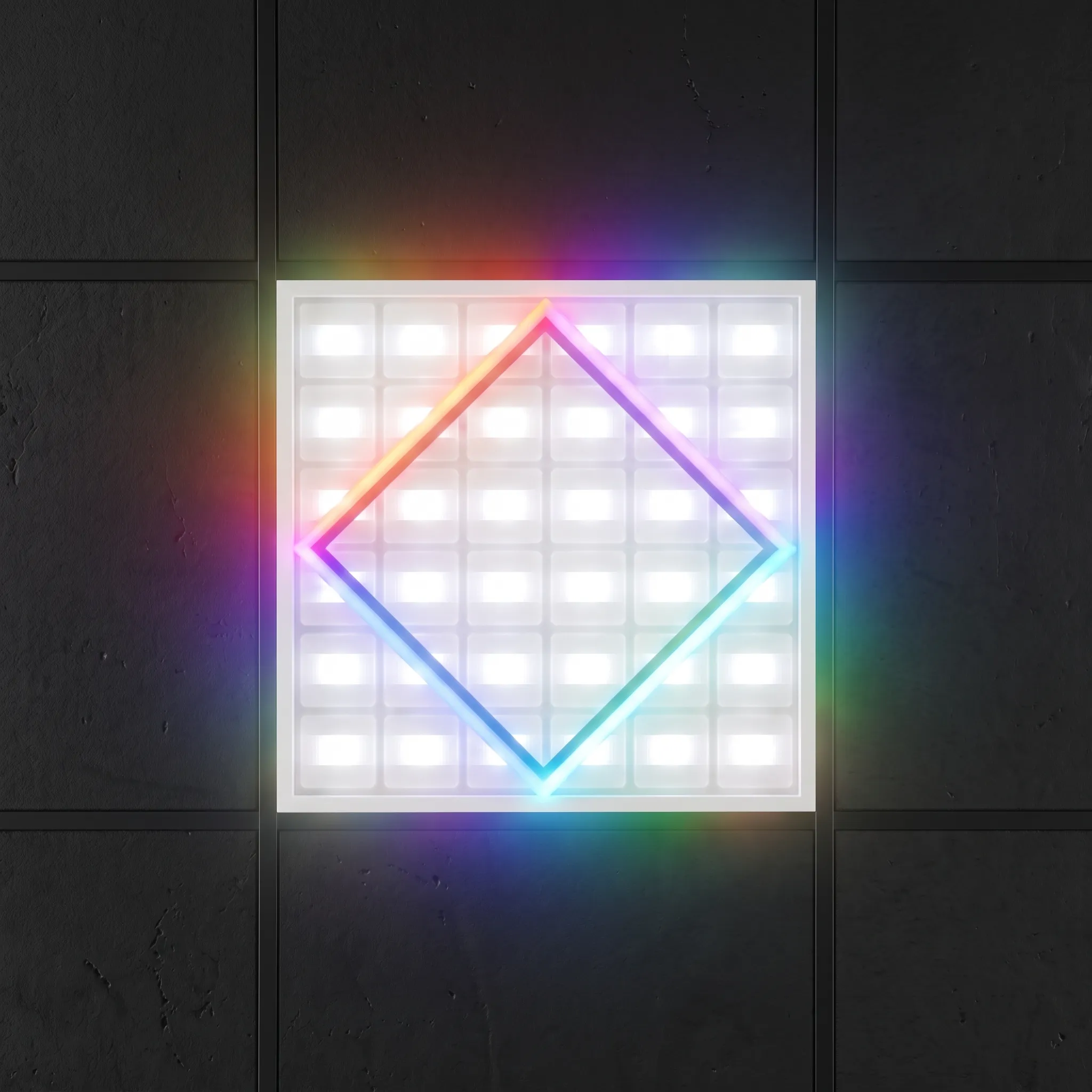

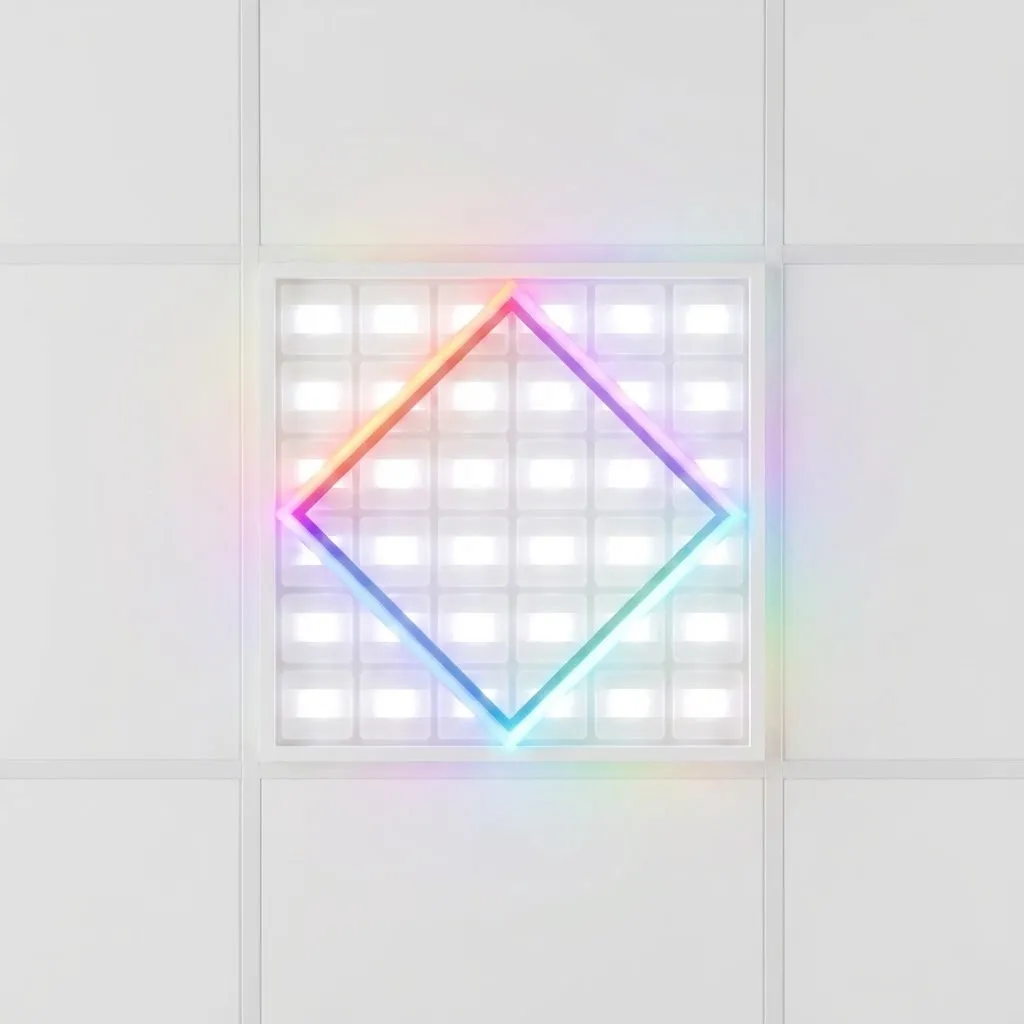

The Diamond Frame Multicolour LED Panel Light delivers two things at once — a high-output 6500K backlit panel for functional ceiling illumination, and a bold RGB diamond accent frame that makes an immediate visual statement. With dual Lifud drivers powering the white and colour channels independently, this fitting is built for commercial environments where both performance and aesthetics matter.
Technical Specifications
| Dimensions | 595 x 595mm |
| Panel Type | Backlit |
| Total Wattage | 80W (40W white panel + 40W RGB frame) |
| Efficacy | 120 lm/W |
| Colour Temperature (Panel) | 6500K — Cool Daylight |
| Frame Accent Colours | Multicolour — Red, Green & Blue (RGB) |
| Driver | 2 x Lifud Driver |
| Body Material | Aluminium with PS diffuser |
| Power Factor | pf 0.9 |
| Mains Voltage | AC 220–240V |
| Certification | CE |
| Accessories Included | 2 x wire connector |
Key Features
| Multicolour RGB Diamond Frame | The rotated diamond accent frame features three independent colour channels — red, green, and blue — creating a vivid, attention-grabbing ceiling feature that sets the tone for the entire retail environment. |
| Backlit Panel Technology | The 40W backlit white panel delivers even, shadow-free 6500K illumination across the full 595x595mm face — combining functional ceiling light with the decorative frame in a single fitting. |
| Dual Lifud Drivers | Two independent Lifud drivers control the white panel and RGB frame separately — ensuring flicker-free output on both channels and allowing each to operate independently if required. |
| 120 lm/W High Efficacy | At 120 lumens per watt, this panel delivers exceptional energy efficiency for its combined white and colour output — keeping running costs low across extended retail trading hours. |
| Standard Grid Ceiling Fit | 595x595mm dimensions drop directly into any standard suspended ceiling grid with no modifications required — the easiest way to add feature lighting to an existing ceiling layout. |
Ideal For
- Vape & e-cigarette shops — RGB aesthetic is a natural fit for this retail sector
- Gaming & electronics retailers — multicolour ceiling lighting reinforces the in-store brand experience
- Barbers & hair salons — bold ceiling feature that elevates the overall environment
- Beauty & nail studios — cool daylight panel for accurate colour work with decorative frame for ambience
- Showrooms & boutiques — statement ceiling that replaces the need for separate feature lighting
- Bars & entertainment venues — RGB accent creates atmosphere without additional installation complexity
Why Choose Maxshelf?
We are one of the UK’s largest importers of retail display equipment and shop lighting, with over 18 years of experience supplying independent retailers, shopfitters, and commercial businesses. All stock is held in our Elstree, London warehouse for fast UK despatch.
Fitting out a full shop ceiling? Contact our sales team for quantity pricing — open Monday–Friday 8am–6pm and Saturday 9am–2pm.
