Description

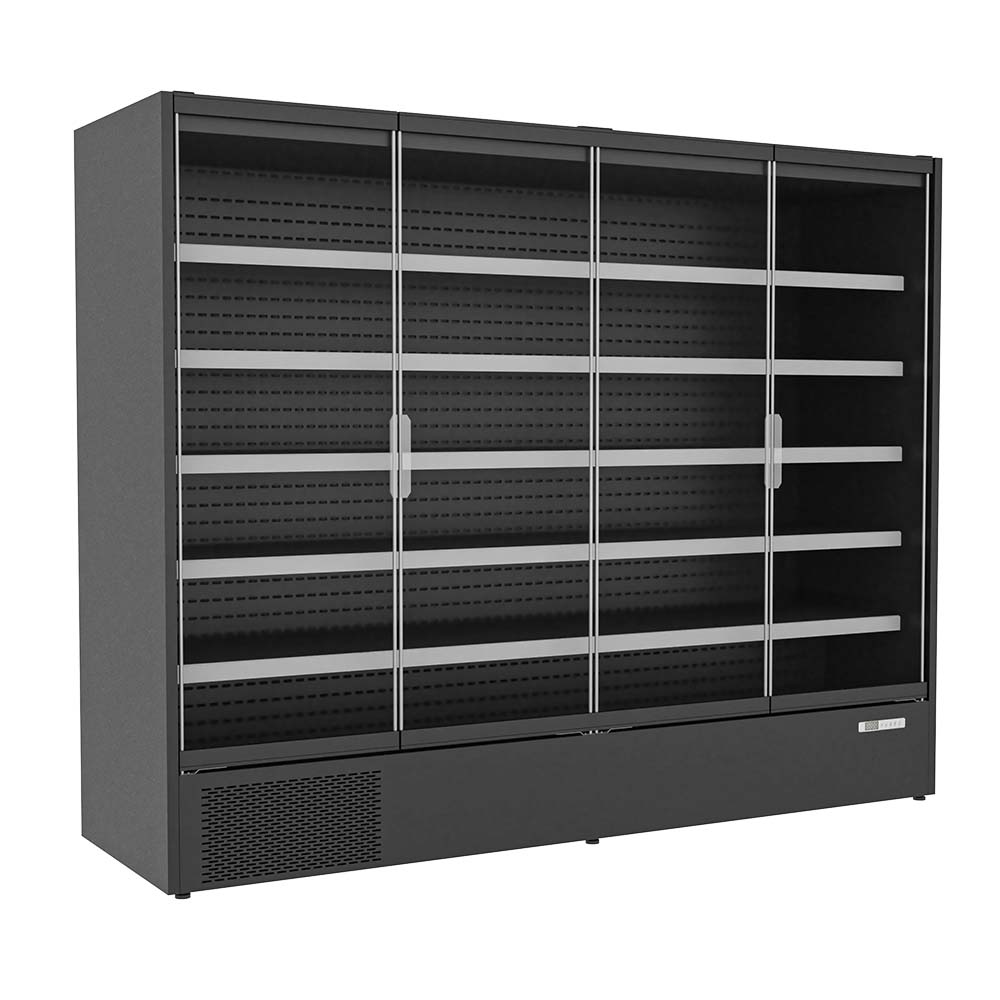

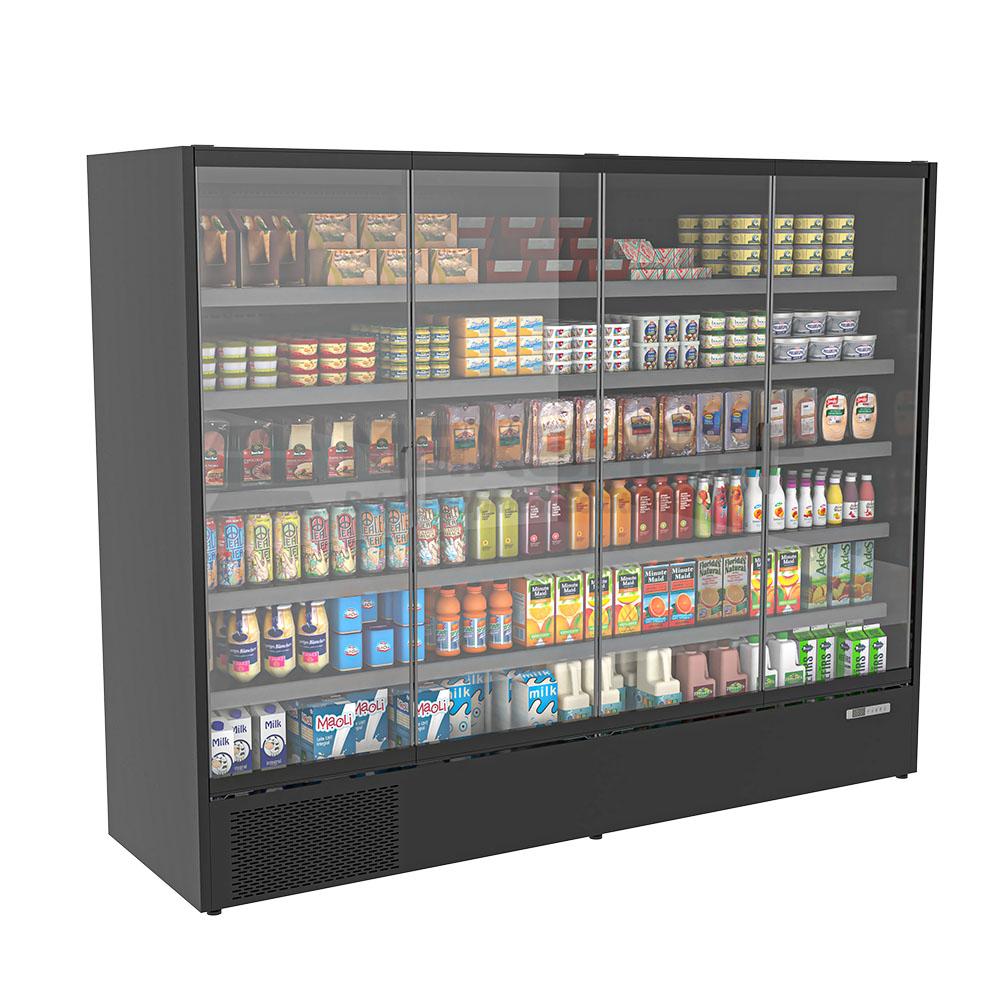

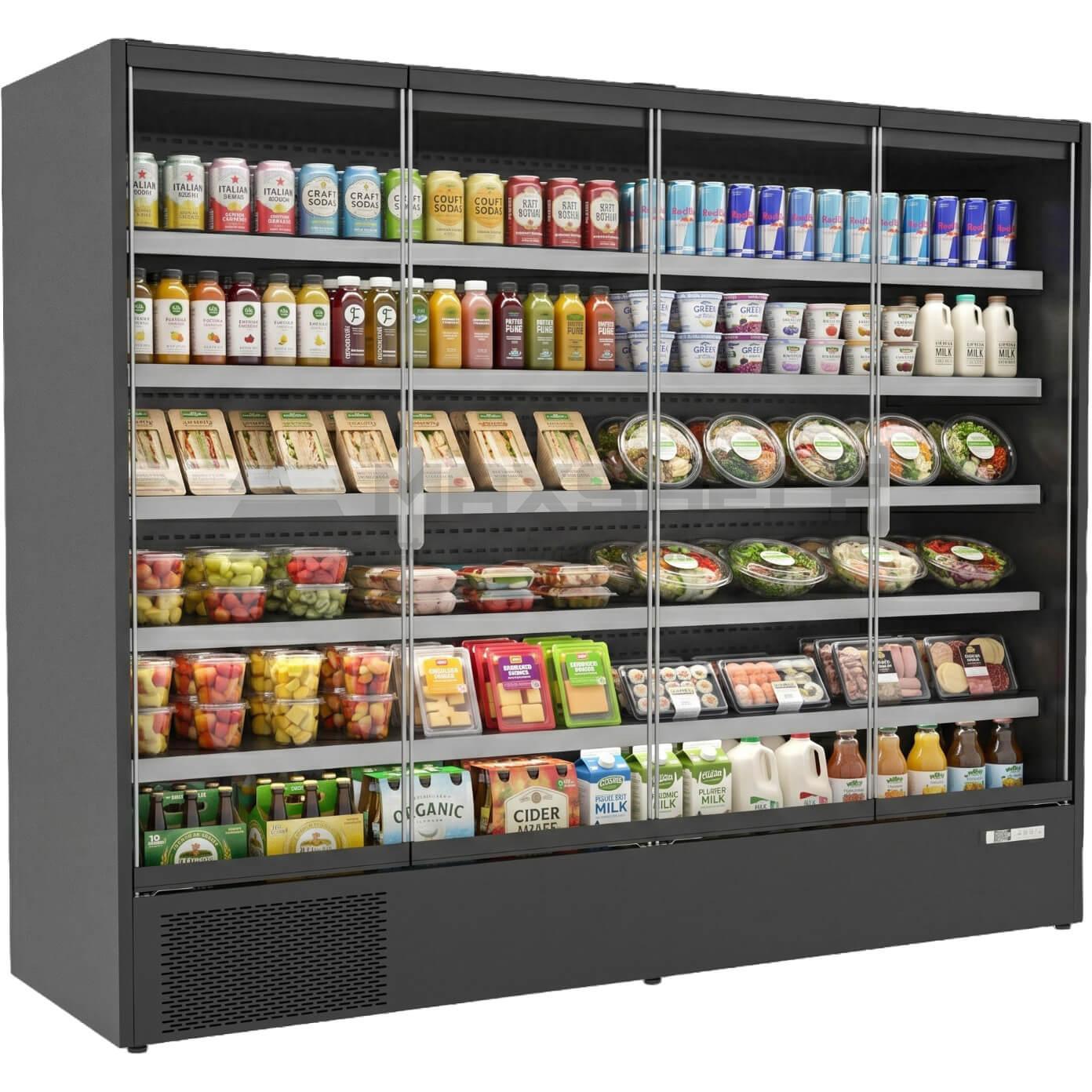

Vmax Four Glass Door Upright Chiller
Maximum Capacity Display Solution | 2060mm x 2560mm x 740mm
The Vmax Four Door Chiller is a powerhouse of commercial refrigeration, offering an expansive 5.00 m² Total Display Area for high-volume retail environments. Designed with a sleek Black External Finish and internal Solid Mirror side panels, it creates an endless visual aisle effect. Operating on the M1 Temperature Range (-1°C to +5°C), it ensures high-performance cooling for perishables while maintaining an industry-leading Energy Class B rating.
Performance & Efficiency

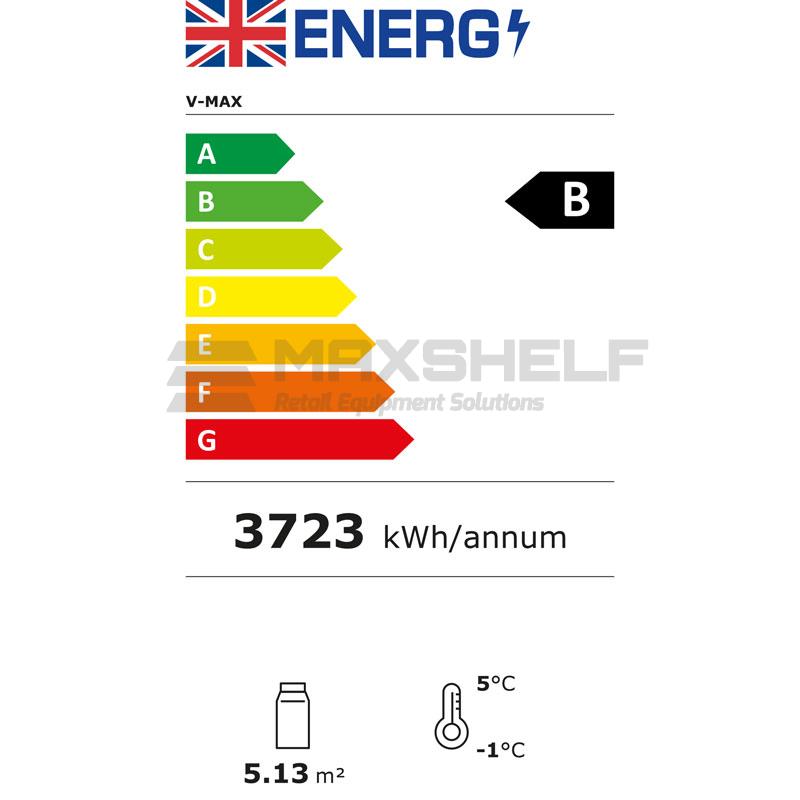

| Energy Rating | Class B |
| Temperature Range | M1 (-1°C to +5°C) |
| Refrigerant | R290 (149g x2) |
| Annual Consumption | 3723 kWh/Annum |
| Daily Consumption | 10.2 kWh/24hr |
| Power Input | 1060W / 6.4A |
Capacity & Display
| Total Display Area | 5.00 ㎡ (TDA) |
| Shelving System | 5 Layers (Adjustable) |
| Shelf Tilting | 0° / 7° / 14° |
| Net Volume | 1529 Litres |
| Lighting | LED Under-Shelf Lighting |
| Cooling Type | Ventilated (Fan Assisted) |
Dimensions & Logistics
External (mm)
2060(H) x 2560(W) x 740(D)
Internal (mm)
1540(H) x 2500(W) x 450(D)
Net Weight
440 KG
Engineered for Impact: This four-door flagship model features electronic temperature control and high-output LED lighting under every shelf layer. The ventilated cooling system is designed to handle frequent door openings, maintaining a consistent M1 climate class even in busy retail environments.
