Description

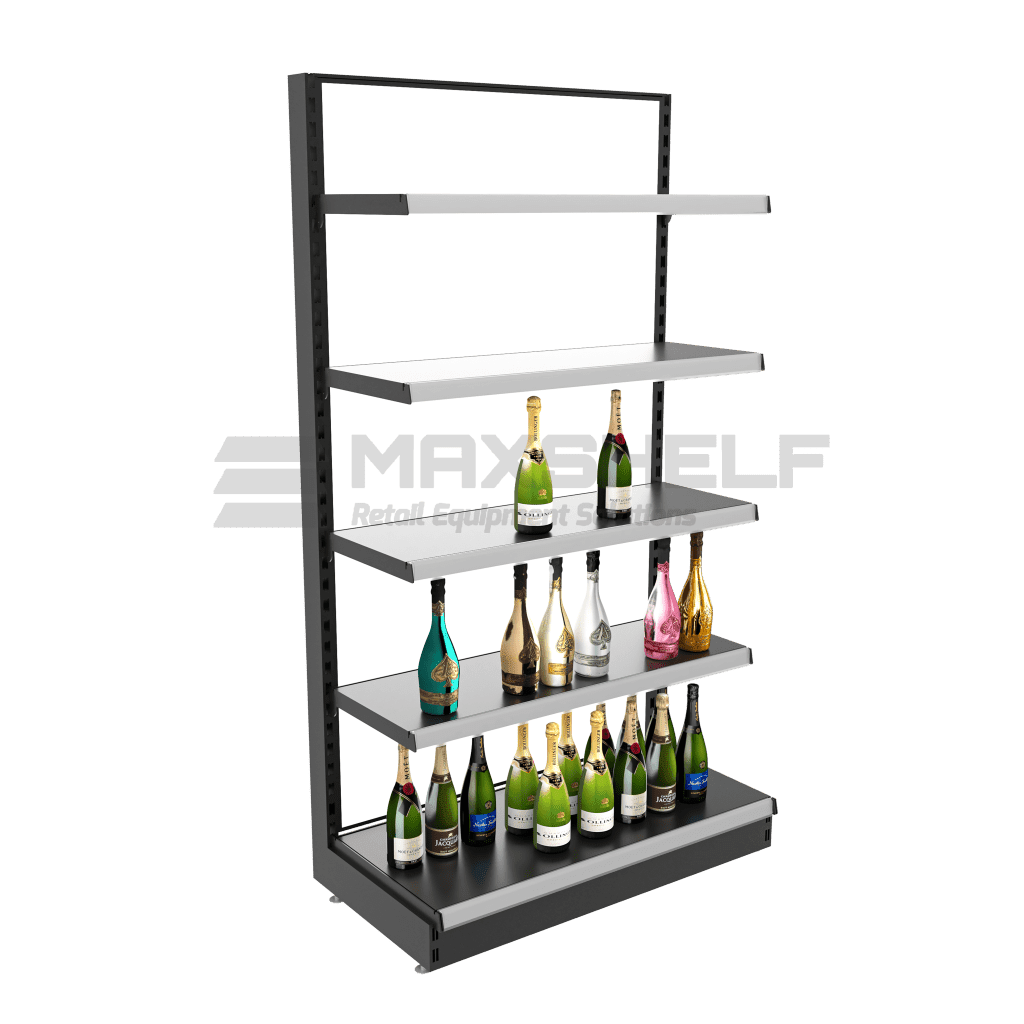

The Maxshelf LED illuminated back panel is a standalone backlit panel designed to be positioned behind shop shelving units — creating a bright, even illumination that highlights products and improves shelf visibility. Used widely in supermarkets, convenience stores, vape shops, off-licences and fashion retail, the LED back panel transforms a standard gondola or wall bay into a high-impact lit display. Each panel is priced and ordered individually; order the quantity you need to cover your bay width or shelving run.
Product Specifications
| Height | 1200mm (fixed) |
| Depth | 15mm |
| Width Options | 665mm / 800mm / 1000mm / 1250mm — select above |
| Light Source | LED — energy-efficient, even backlight illumination |
| Colour Temperature | 6500K — cool white, high-visibility retail light |
| Luminous Output | 665mm: 12,000 lm | 800mm: 16,000 lm | 1000mm: 21,000 lm | 1250mm: 26,000 lm |
| Pricing Unit | Per panel — order the quantity needed for your shelving run |
| Compatible With | Standard gondola and wall bay shelving systems |
| Use | Retail shelving backlight — supermarkets, convenience stores, vape shops, fashion retail |
| Stock | Available — Elstree warehouse, Borehamwood WD6 3BL |
Which Width Do I Need?
Match the panel width to your shelving bay width. All panels output 6500K cool white light — lumen output increases with panel size:
| Width | Lumen Output | Typical Shelving Bay Match |
|---|---|---|
| 665mm | 12,000 lm | Narrow bay or partial bay coverage |
| 800mm | 16,000 lm | Standard gondola or wall bay — most common size |
| 1000mm | 21,000 lm | Wider bay or two narrow bays side by side |
| 1250mm | 26,000 lm | Wide bay or extended shelving run |
Where Is This Panel Used?
- Supermarkets & convenience stores — highlights key product categories and promotions
- Vape shops — creates a high-impact lit backdrop behind display shelving
- Off-licences & wine retail — backlit wine and spirits shelving is a proven sales driver
- Fashion & beauty retail — premium lit display for featured products
- Pharmacies — illuminated shelving for skincare and health product zones
- Bakeries & food retail — warm illumination for product display areas
Installation & Ordering Notes
- Select your required width from the options above before adding to cart
- Price shown is per panel — order the quantity needed for your shelving run
- Height is fixed at 1200mm across all width options
- Depth is 15mm — suitable for most standard shelving bay configurations
- For complete illuminated shelving units (panel + shelving), see the Illuminated Back Panel Unit category
- If unsure which width to order, contact our team — we can advise based on your bay dimensions
Need a complete illuminated shelving unit?
Browse our Illuminated Back Panel Unit range — full gondola and wall bay units with built-in LED back panel, ready to configure and order as a complete display system.
