Description

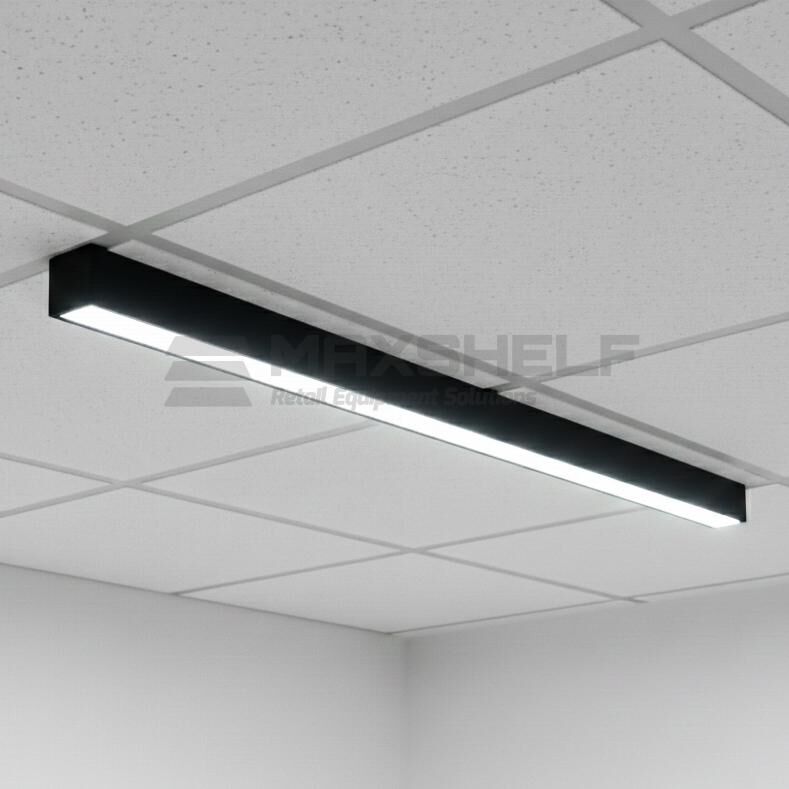

The LED Linkable Linear Light is a high-performance commercial fitting built around a Philips LED chip and Lifud driver — two of the most trusted names in professional lighting. With a 120 lm/W efficacy rating, CCT dip-switch selection, and a linkable end-to-end design, this batten delivers exceptional light output with minimal energy consumption. All installation accessories are included as standard.
Available Sizes & Specifications
1200mm – 40W
| Dimensions | 1200 x 50 x 75mm |
| Wattage | 40W |
| Lumen Output | 4800 lm |
| Efficacy | 120 lm/W |
| LED Chip | Philips |
| Driver | Lifud |
| CCT Options | 4000K / 5000K / 6500K |
| Body | Aluminium Profile |
| Installation | Suspension |
| Warranty | 2 Years |
1500mm – 50W
| Dimensions | 1500 x 50 x 75mm |
| Wattage | 50W |
| Lumen Output | 6000 lm |
| Efficacy | 120 lm/W |
| LED Chip | Philips |
| Driver | Lifud |
| CCT Options | 4000K / 5000K / 6500K |
| Body | Aluminium Profile |
| Installation | Suspension |
| Warranty | 2 Years |
Key Features
| Philips LED Chip | Genuine Philips LED chip delivers consistent, high-quality light output with excellent colour rendering and long-term lumen maintenance — a benchmark component for commercial lighting installations. |
| Lifud Driver | Lifud is one of the world’s leading LED driver manufacturers. The integrated Lifud driver ensures stable, flicker-free power delivery for extended fitting lifespan and comfortable working environments. |
| CCT Dip-Switch (3 Settings) | A physical dip-switch on each fitting allows independent CCT selection — 4000K (neutral white), 5000K (bright neutral), or 6500K (daylight cool) — without any additional wiring or controllers required. |
| 120 lm/W High Efficacy | At 120 lumens per watt, these fittings deliver exceptional brightness-to-energy ratios — 4800lm from 40W and 6000lm from 50W — significantly outperforming standard LED battens and all fluorescent alternatives. |
| Linkable End-to-End | Connect multiple units in a continuous run for seamless linear lighting across aisles, shelving runs, and open-plan ceilings — with a single power connection feeding the entire linked chain. |
| Slim Aluminium Profile Body | 50 x 75mm aluminium extrusion provides a low-profile, robust housing with excellent heat dissipation — extending LED lifespan and maintaining lumen output over time. |
| Suspension Installation – All Accessories Included | Designed for suspended ceiling installation. All necessary mounting hardware and suspension accessories are supplied in the box — ready to install straight out of the packaging. |
Which CCT Setting Is Right for You?
4000K
Neutral White — retail shops, showrooms, offices
5000K
Bright Neutral — food retail, workshops, corridors
6500K
Daylight Cool — warehouses, stockrooms, garages
Ideal For

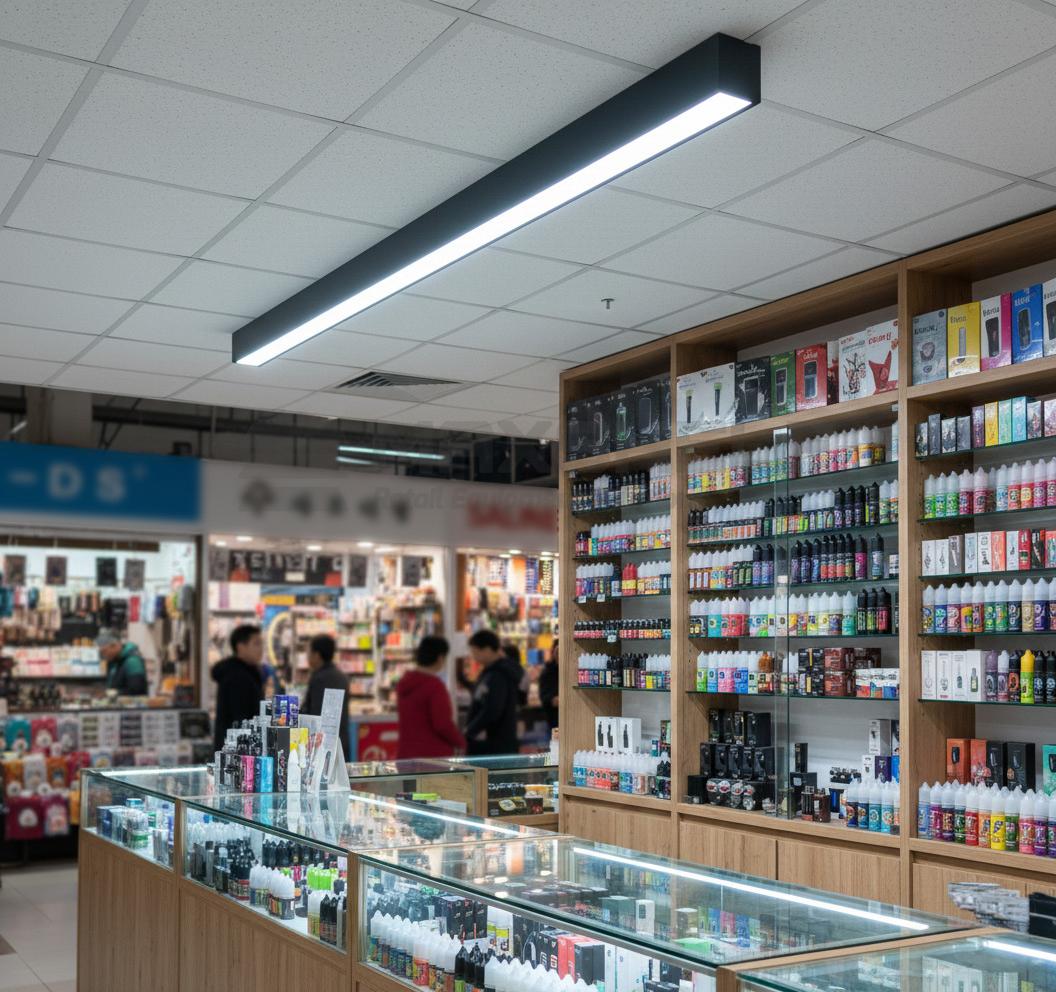

- Retail shops & supermarkets — linkable runs for consistent aisle-to-aisle illumination
- Warehouses & distribution centres — high-lumen output for safe, well-lit working conditions
- Offices & commercial spaces — flicker-free Lifud driver for comfortable long-hour environments
- Showrooms & car dealerships — neutral 4000K or 5000K for accurate colour rendering
- Workshops & garages — robust aluminium housing with cool daylight output
- Shop fit-outs & refurbishments — all accessories included for fast, straightforward installation
Why Choose Maxshelf?
We are one of the UK’s largest importers of retail display equipment and shop lighting, with over 18 years of experience supplying independent retailers, shopfitters, and commercial businesses. All stock is held in our Elstree, London warehouse for fast UK despatch.
Planning a full shop lighting scheme? Contact our sales team for quantity pricing — open Monday–Friday 8am–6pm and Saturday 9am–2pm.
