Description

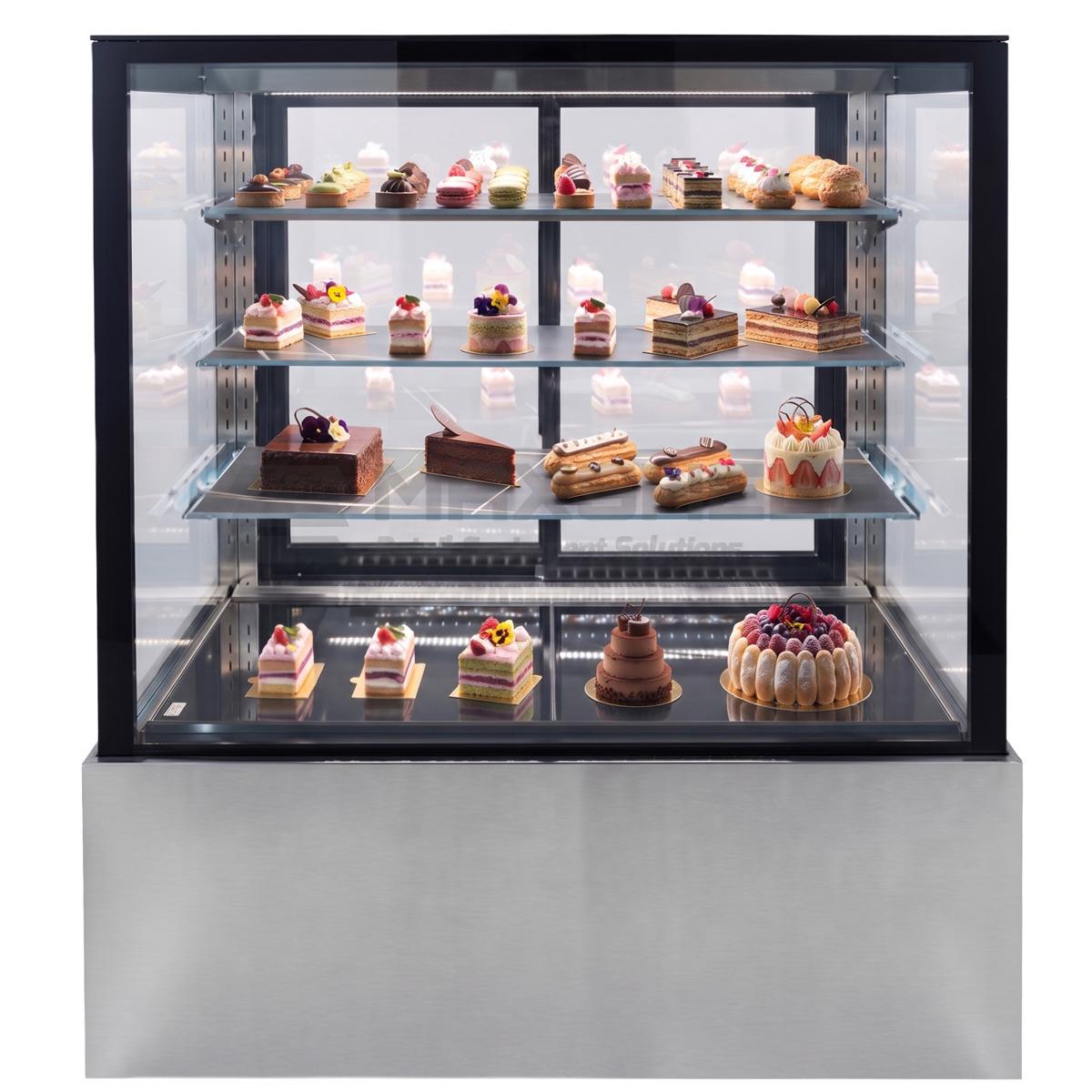

Your counter display is the first thing customers judge. This 900mm refrigerated patisserie showcase puts cakes, slices, éclairs and plated desserts on four levels of clear, evenly lit glass — three glass shelves above a full-width base deck — so every item is visible from the shop floor. A compact 900mm footprint makes it a practical choice for independent cafés, bakeries and patisseries that want a full-height chilled display without giving up counter space.
Designed for Presentation
Straight glass on the front and sides, slim black framing and LED illumination along the top create an open, gallery-style display that lets the product do the selling. The three glass shelves are set on an angle towards the customer and mounted on slotted stainless side uprights, with a generous base deck below for whole gateaux, celebration cakes and larger pieces. Glass panels at the rear give staff access to the display from behind the counter.
Consistent, Controlled Cooling
A fan-assisted evaporator circulates chilled air through the cabinet, holding a temperature range of 0–12°C — ideal for cream cakes, mousses, tarts and chilled pastries. The digital temperature controller makes it easy to set and monitor, and automatic defrosting keeps the evaporator clear without manual intervention. The unit is rated Climate Class 4, suited to environments up to 30°C at 55% relative humidity.
Efficient and Environmentally Responsible
The showcase runs on R290, a natural hydrocarbon refrigerant with a very low global warming potential, and the cabinet is insulated with cyclopentane foam. LED lighting keeps energy draw and heat output down inside the display. It plugs into a standard 220–240V, 50Hz supply with a rated current of 3.6A.
Key Features
- 3 angled glass shelves plus a full-width base deck
- 2.3m² total display area · 388 litres gross internal volume
- 0–12°C temperature range with digital temperature controller
- Fan-assisted cooling and automatic defrost
- Straight glass front and sides for all-round visibility
- LED illumination (28W)
- R290 natural refrigerant · cyclopentane-foamed insulation
- Stainless steel finish inside and out
- CE marked
Technical Specifications
| Temperature Range | 0–12°C |
|---|---|
| Cooling Type | Fan-assisted |
| Defrost | Automatic |
| Controller | Digital temperature controller |
| Refrigerant | R290 (130g) |
| Climate Class | 4 (max. 30°C at 55% RH) |
| Shelves | 3 glass shelves + base deck |
| Lighting | LED (28W) |
| Reversible Door | No |
| Power Supply | 220–240V, 50Hz |
|---|---|
| Rated Input Power | 700W |
| Rated Current | 3.6A |
| Energy Efficiency Class | D |
| Energy Consumption | 12.62 kWh/24h · 4,606.3 kWh/year |
| Noise Level | ≤ 65dB |
| External / Internal Finish | Stainless steel |
| Insulation Foaming Agent | Cyclopentane |
| Net Weight | 142kg |
Dimensions
⚠ Delivery & Installation Note
This showcase weighs 174kg packed and measures 1000 × 750 × 1605mm in its packaging. Please check door widths, steps and access routes before ordering. As with most refrigerated equipment, allow the unit to stand upright for several hours after delivery before switching it on, and leave space around the cabinet for ventilation.
