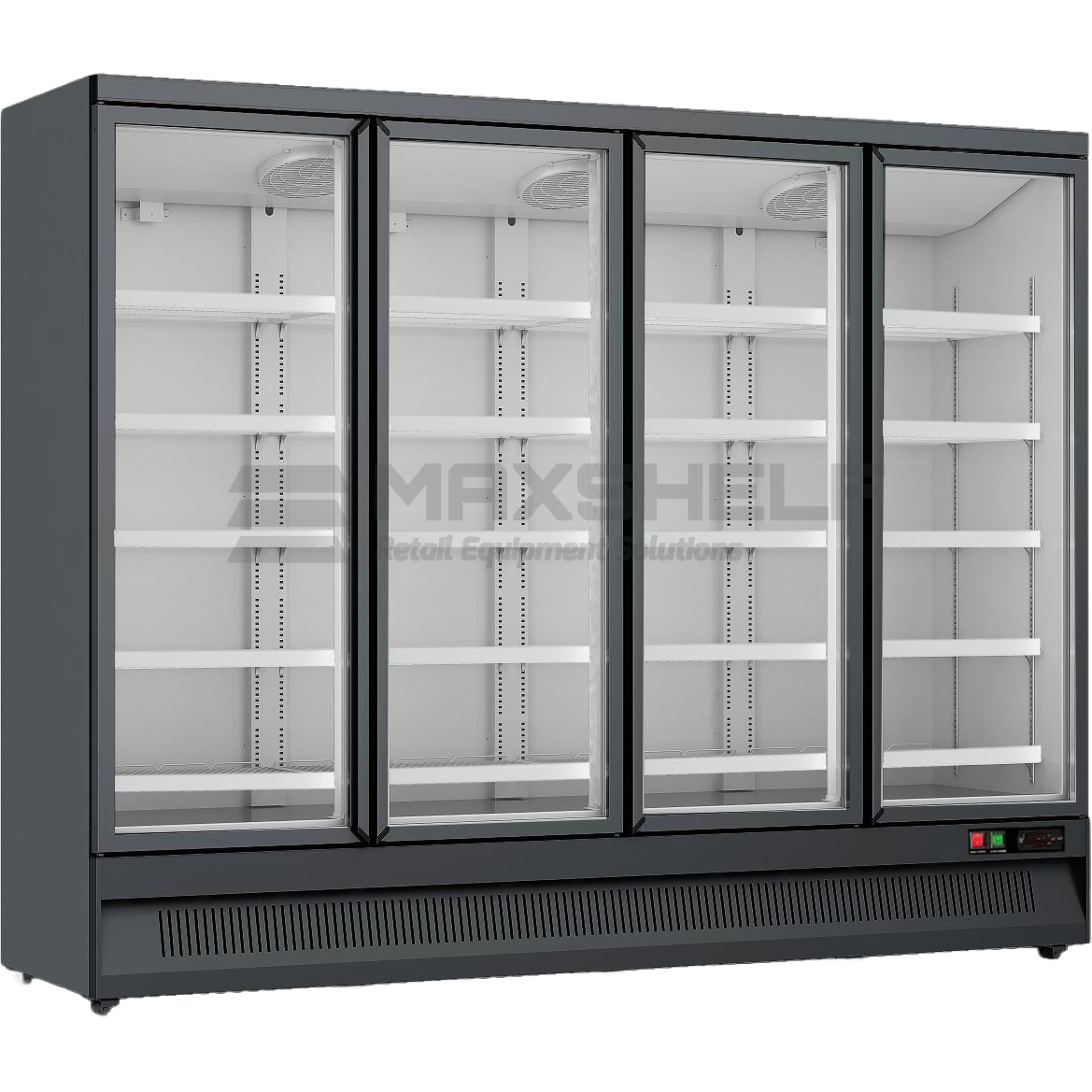

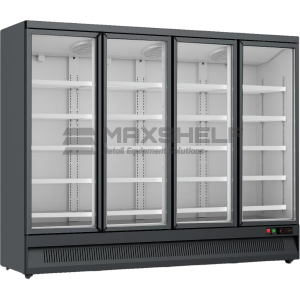

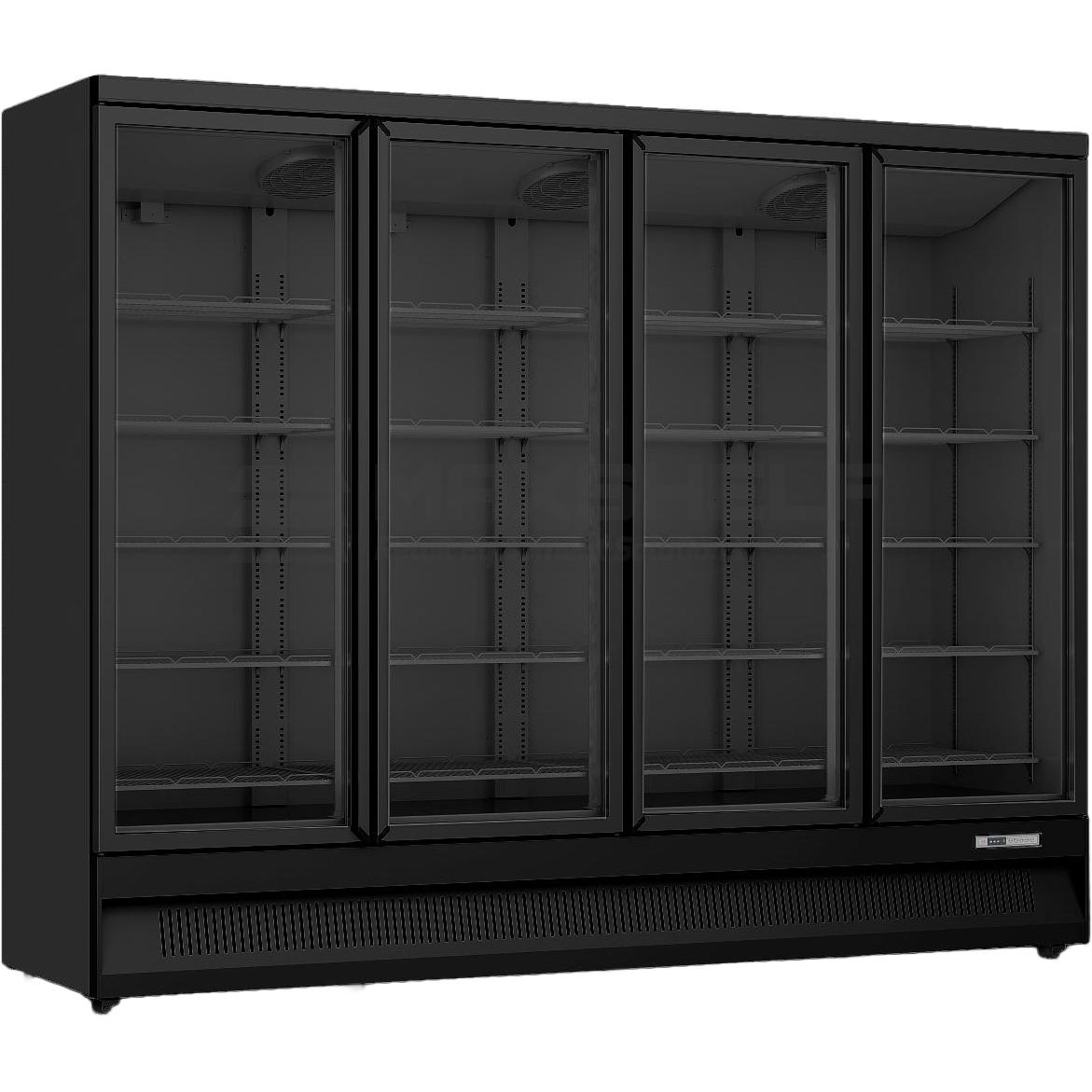

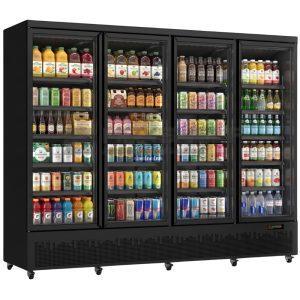

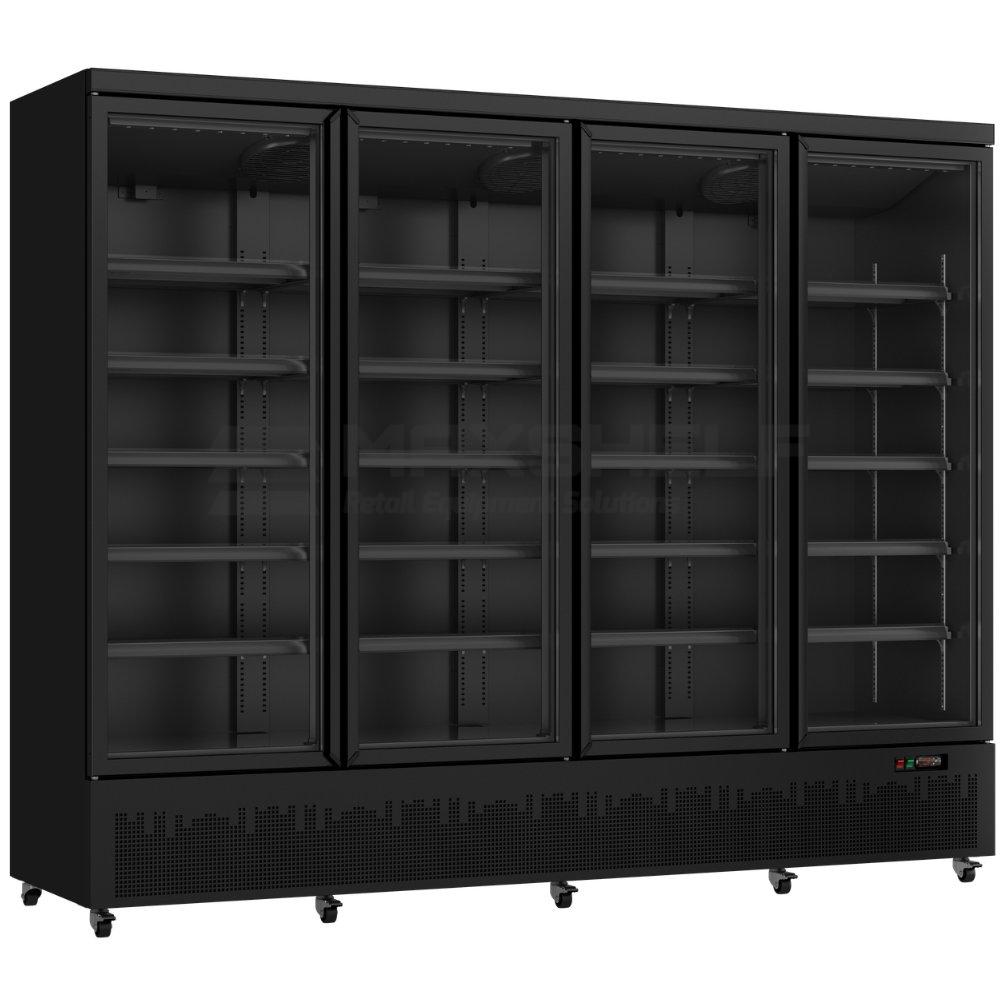

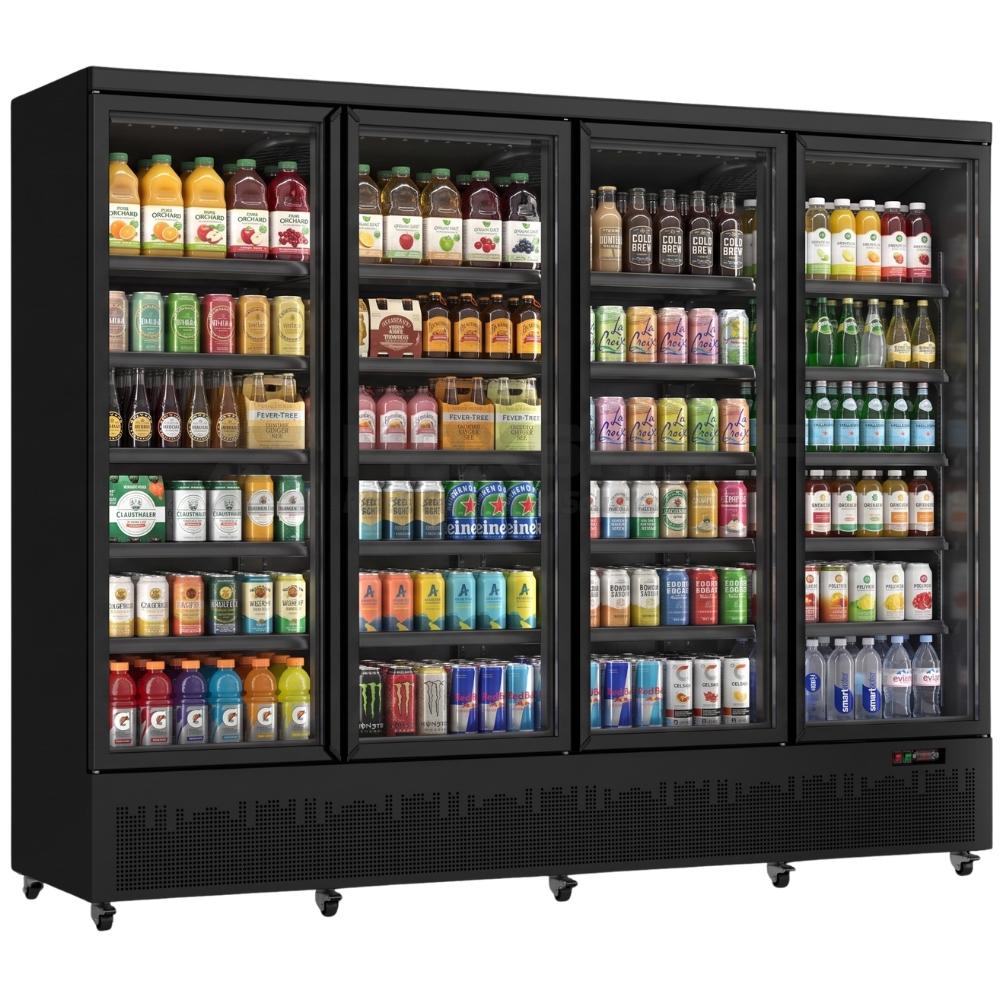

VMAX 4 Door Upright Bottle Cooler Display Fridge – Commercial Chiller

The VMAX 4 Door Upright Bottle Cooler is the flagship unit in the VMAX commercial refrigeration range — a full-width chilled drinks wall in a single freestanding cabinet. At 2508mm wide with a 2160L net capacity, it can hold 1,428 × 550ml bottles or 2,856 × 330ml cans across 20 adjustable shelves, making it the natural choice for supermarkets, large convenience stores, cash and carry operations and high-volume hospitality venues. Four full-height glass doors — paired in two side-to-side sets — give complete access to the entire cabinet for both customers and restocking teams, minimising the time doors are open during busy trading periods.

Dual Independent Circuits for Consistent Performance at Scale

Cooling a 2.5-metre cabinet reliably requires more than a scaled-up single-door system. The VMAX four door unit runs two independent condensers, two evaporators and a combined five-fan system — two condenser fans pushing heat out from the rear, and three evaporator fans circulating cold air evenly across all 20 shelf levels from front to back. This dual-circuit design ensures that no section of the cabinet runs warmer than another, maintaining a consistent -1°C to +10°C product temperature even when all four doors are in frequent use. Should one circuit require attention, the other continues to operate — a practical redundancy benefit for high-volume environments where downtime is costly.

Key Features

• ✔ 2160L net / 2248L gross capacity – flagship-level stock holding across four full-height doors
• ✔ Dual independent cooling circuits – 2 condensers, 2 evaporators, 5 fans for even temperature across 2508mm
• ✔ 20 white wire shelves – adjustable with 16mm wire spacing across all four bays
• ✔ Quad LED canopy lighting – 12W × 4 / 9000–10000K for powerful, full-width product illumination
• ✔ 38mm price bars – white, without cover, across each shelf for clean shelf-edge labelling
• ✔ Four full-height glass doors – paired side-to-side opening for fast, full-width cabinet access
• ✔ Self-evaporating defrost – frost-free operation with no manual maintenance required
• ✔ Electronic thermostat – front grill-mounted control for straightforward temperature management
• ✔ Aluminium door frames with integrated handles – double-glazed, S-tempered glass; optional oval lock on each door
• ✔ R290 dual-circuit refrigerant & cyclopentane insulation – low-GWP, environmentally responsible specification
• ✔ UK plug, 2m cord – CB/CE/ERP/ROHS/REACH certified; plug-in ready

Technical Specifications

Dimensions & Weight
