VMAX Double Door Wall-Site Top Case Combi Freezer

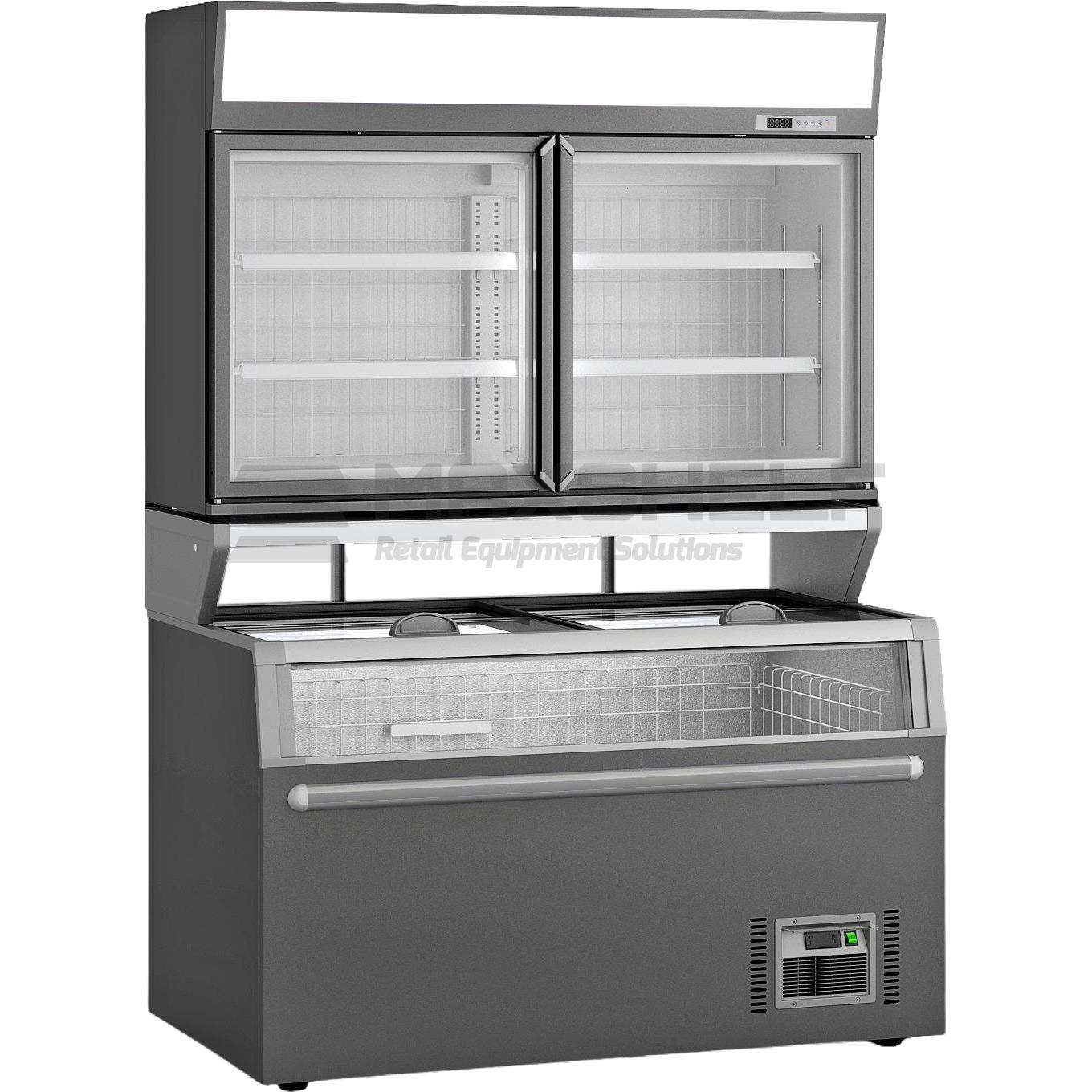

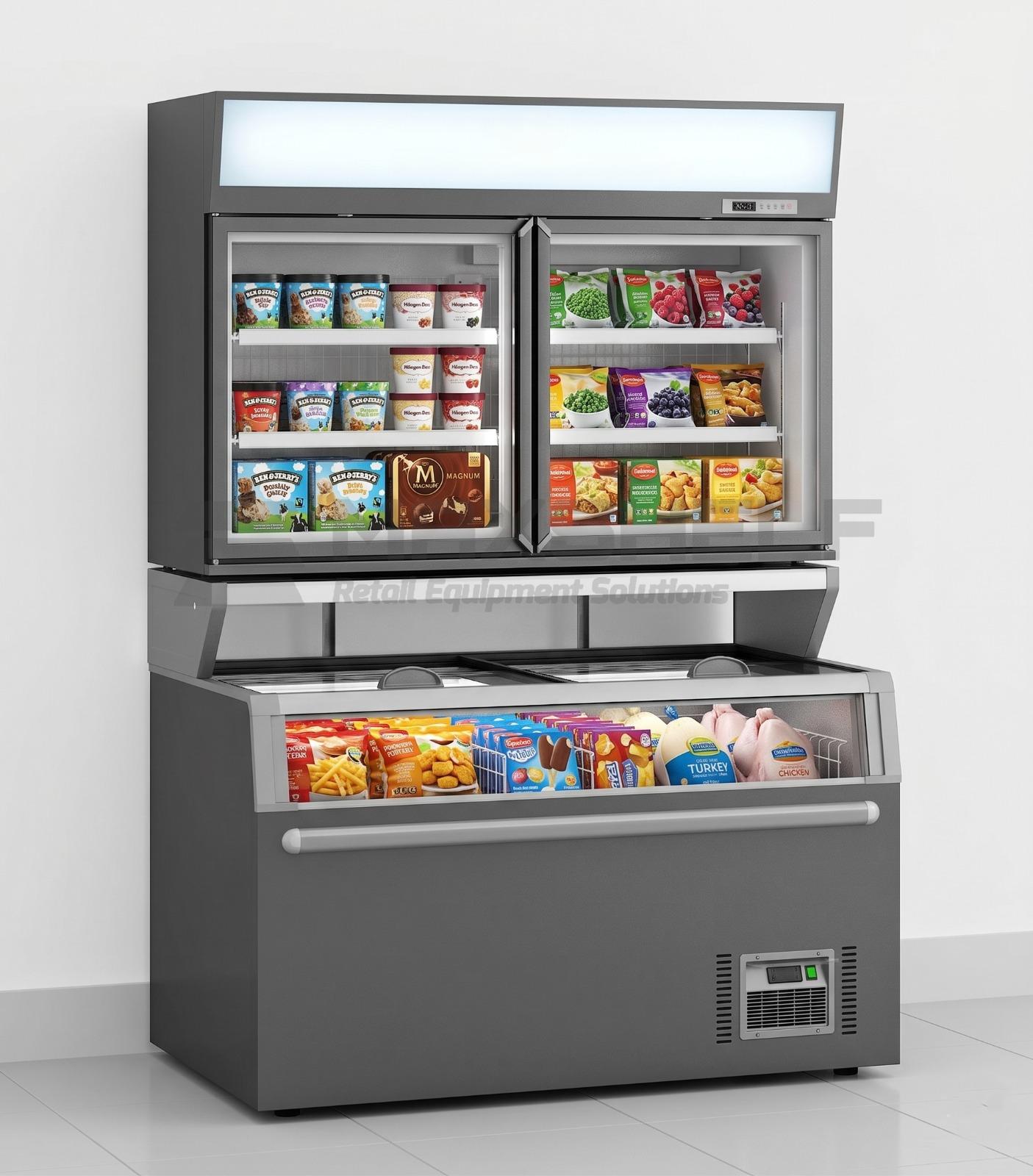

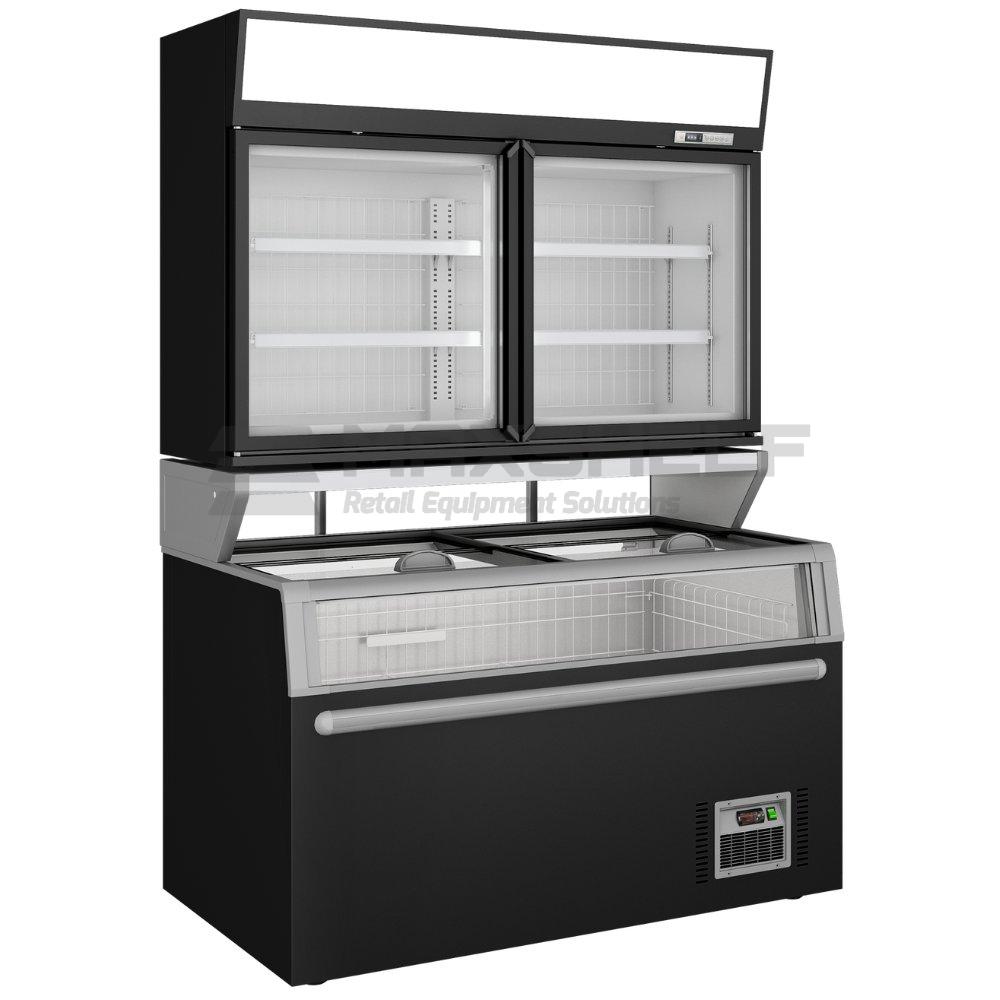

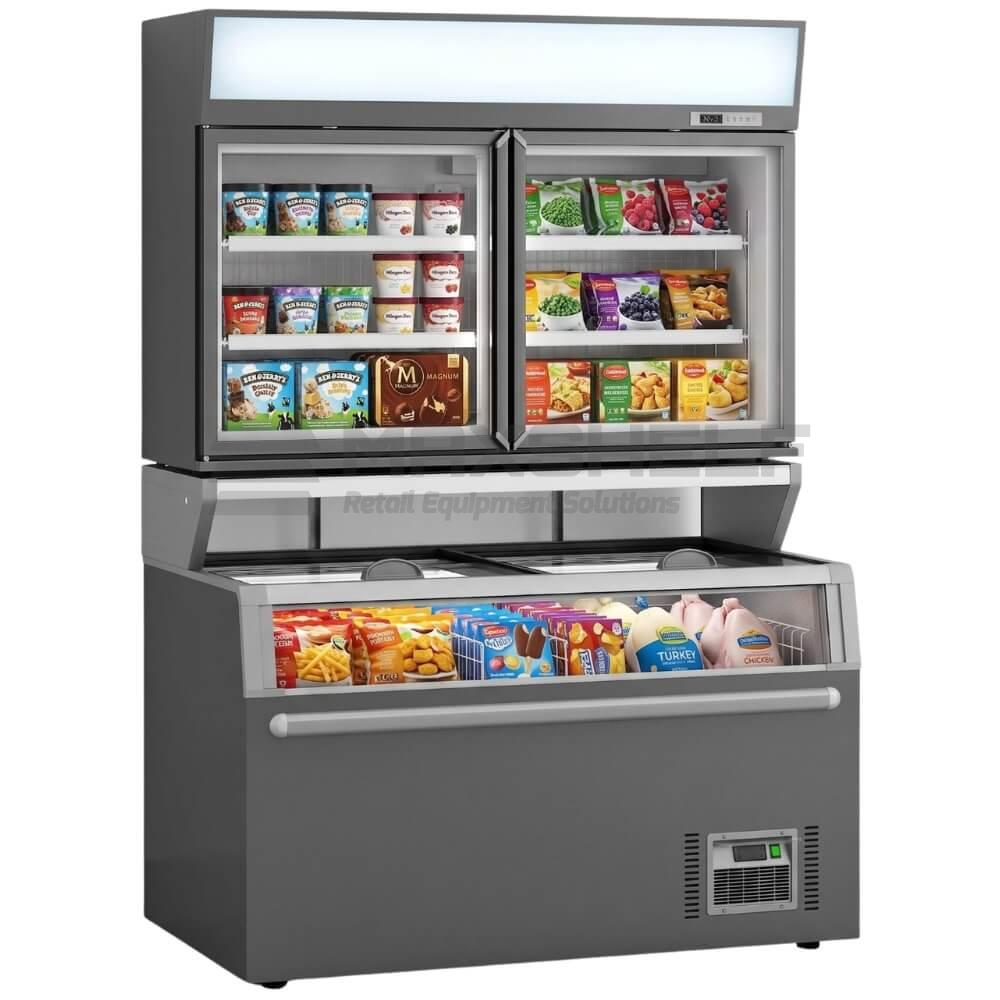

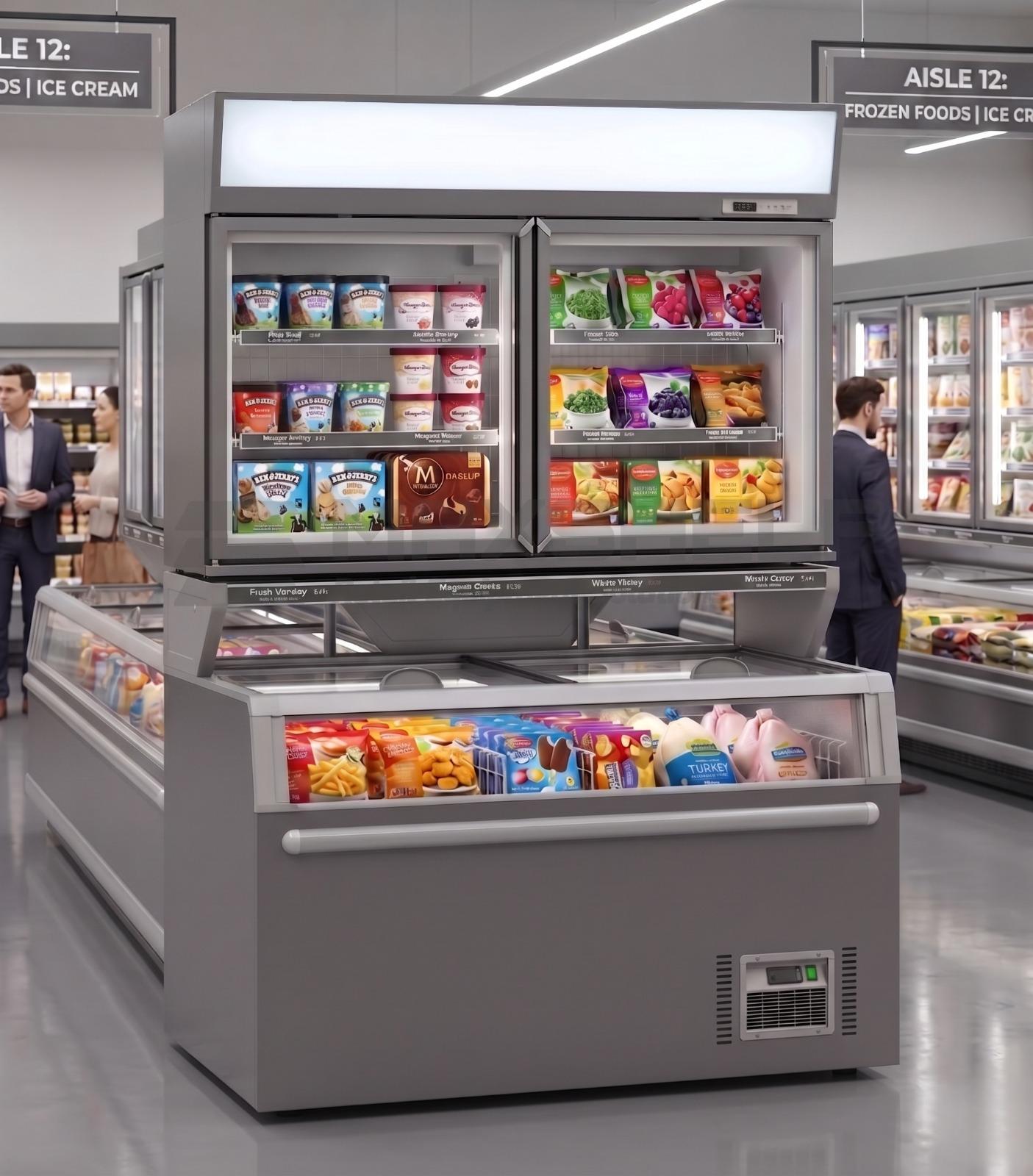

The VMAX Double Door Wall-Site Top Case Combi Freezer combines two purpose-built freezer cabinets into a single, space-efficient wall-site display. The upper double glass door wall unit delivers an upright freezer display with frost-free fan cooling, two rotating glass doors and four adjustable shelves — ideal for bagged, boxed and individual frozen products that benefit from clear visibility at eye and chest height. Below it, the two-door chest freezer base provides a deep, direct-cooled bulk storage and display zone with sliding glass lids and internal wire baskets — suited to high-volume frozen lines and bulk SKUs. Together they deliver a combined 634L net capacity across 1450mm of wall width, making this the ideal frozen display format for convenience stores and smaller supermarket bays where wall space is limited but frozen range depth is essential.

Two Cabinets, One Display — Complete Frozen Coverage

The double door combi format delivers the same dual-zone frozen display concept as larger multi-door alternatives, in a footprint that suits tighter store layouts. The wall unit keeps individual and branded frozen products upright, well-lit and immediately visible behind two full-height glass doors — driving impulse purchase at eye level. The chest base sits directly below, holding bulk lines and multipacks in deep wire-separated bays behind sliding glass lids — keeping more frozen product on the shop floor without increasing the unit’s overall width. Both cabinets are supplied together, pre-matched in finish and aligned across the full 1450mm, for a clean, seamless installation against any wall or partition.

Key Features

• ✔ 634L combined net capacity – 402L chest base + 232L wall unit; two independent freezer compartments
• ✔ Double glass door wall unit – 2 rotating doors, side-to-side opening from left; round lock standard on each door
• ✔ Frost-free wall unit cooling – 2 evaporator fans maintain even -18°C to -22°C across all shelf levels
• ✔ 4 adjustable white wire shelves in wall unit – 16mm wire spacing for flexible product configuration
• ✔ Two-door chest base – sliding glass lids with direct cooling at -15°C to -22°C
• ✔ Internal wire baskets in chest base – steel wire, white dip-coated, with basket supports and divider grilles
• ✔ Illuminated canopy – flat canopy with light cover on wall unit; internal LED lighting throughout both cabinets
• ✔ 38mm price bars on wall unit shelves – white, without cover, for clean shelf-edge labelling
• ✔ Electronic thermostat on both units – wall unit controller on canopy; chest unit controller on bottom-right corner
• ✔ Hot gas defrost on both cabinets – self-evaporating drainage; no manual intervention required
• ✔ R290 refrigerant & cyclopentane insulation – low-GWP specification on both units
• ✔ Dark grey finish – steel exterior on both cabinets; matched across the full 1450mm width
• ✔ UK plug, 2m cord on each unit – CB/CE/ERP/ROHS/REACH certified; two separate power connections

Technical Specifications

Wall Unit (CFWU145HD)

Chest Freezer Base (CFBU145SD)

Dimensions & Weight
