Description

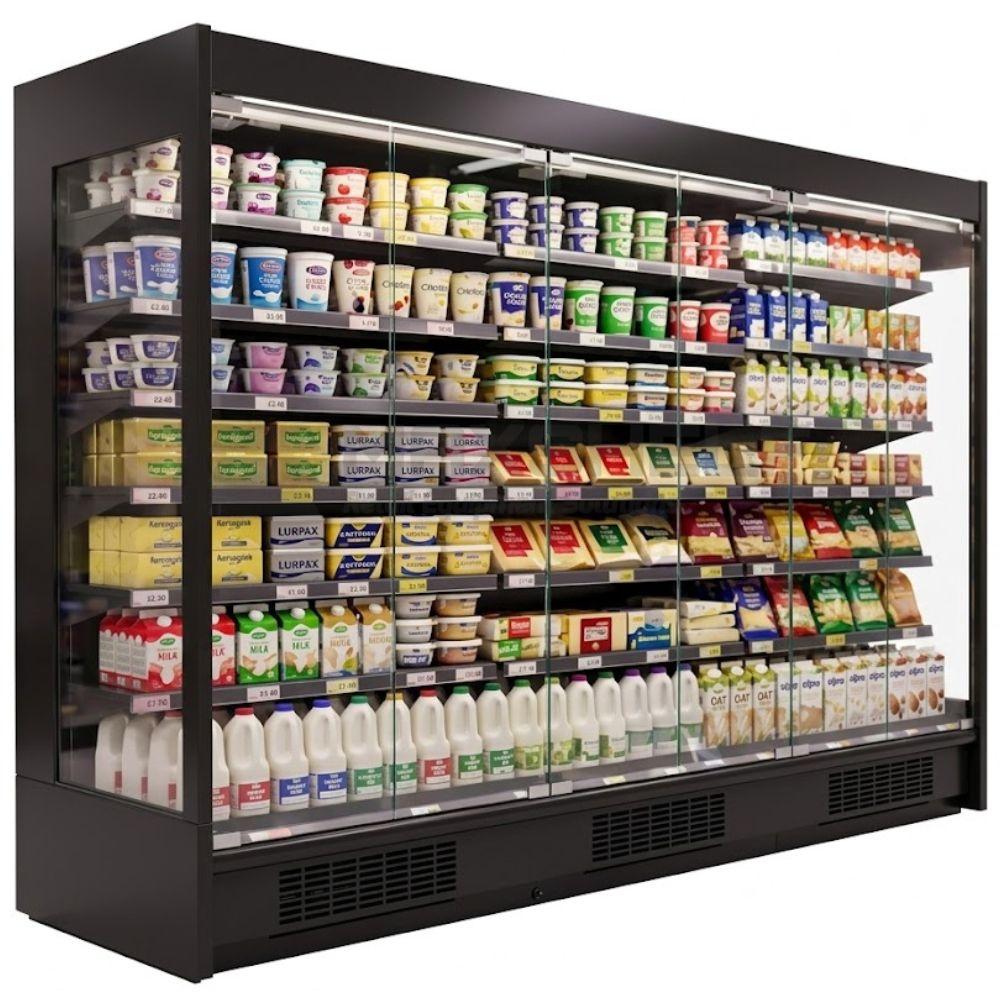

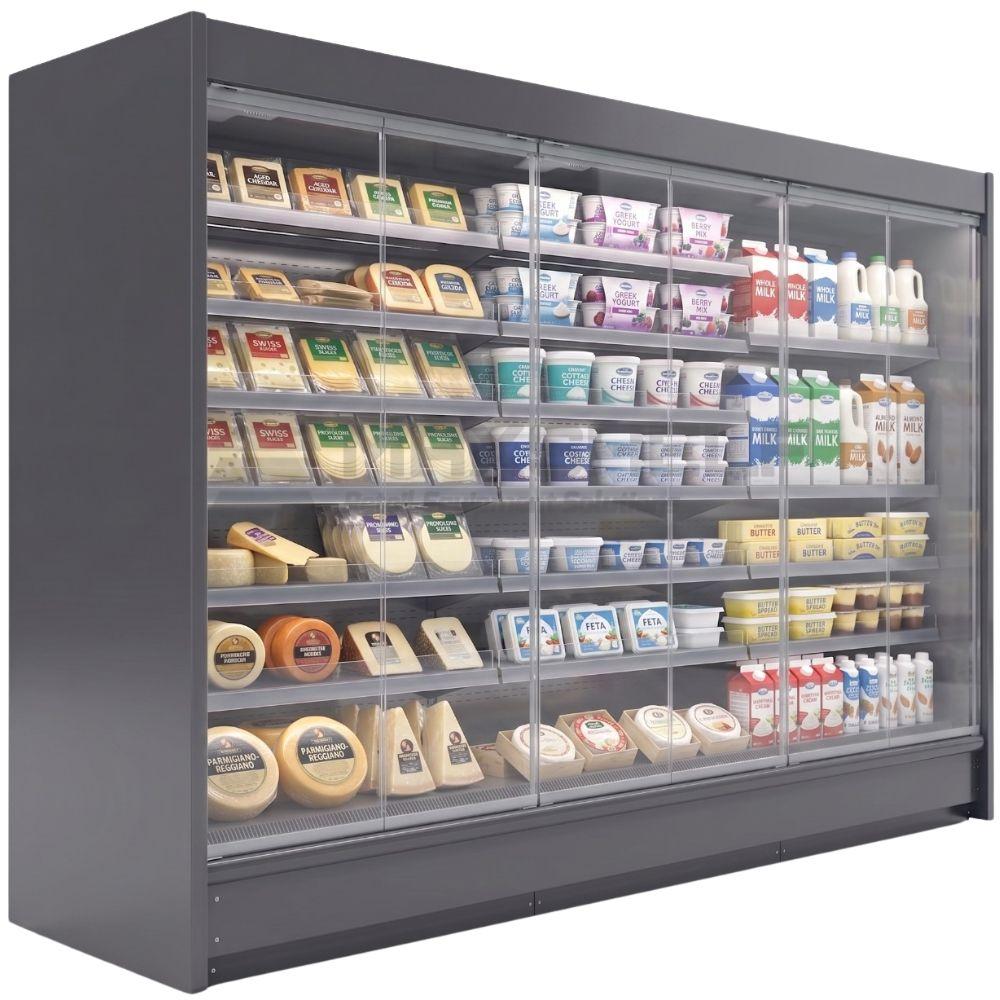

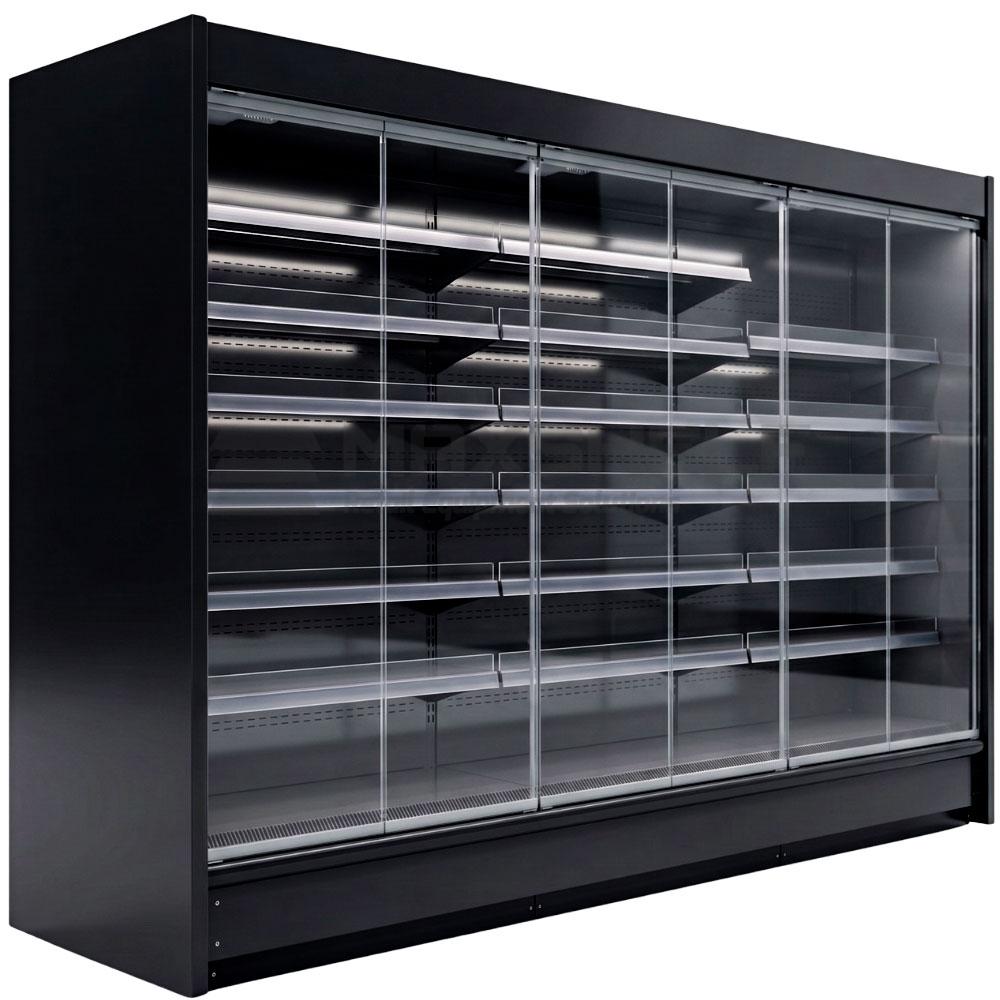

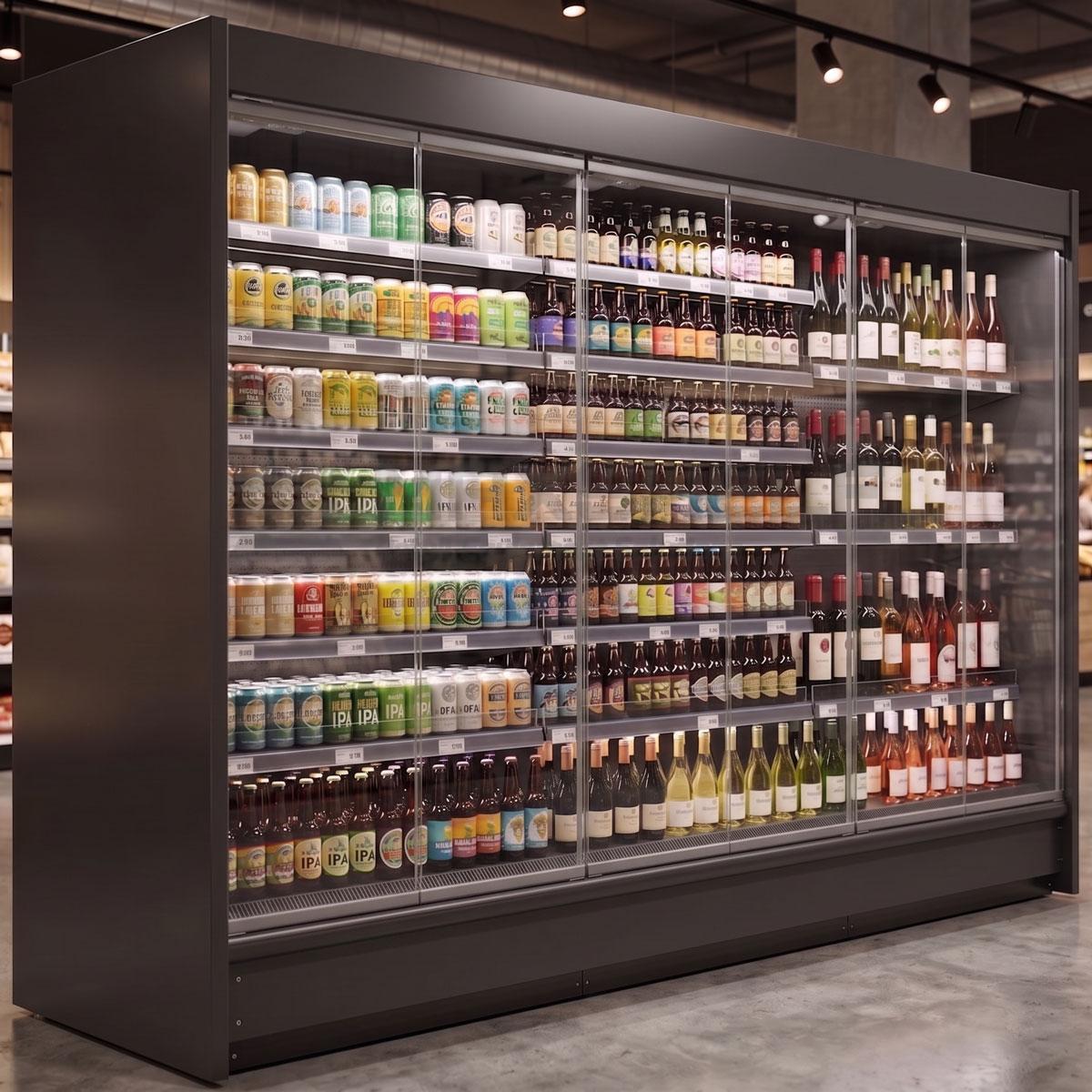

The VMAX Remote Multideck Chiller Glass Door 2500mm is a remote refrigeration multideck cabinet designed for retailers building a serious chilled display wall. At 2500mm wide with a 2,030L net volume and 4.38m² total display area (calculated to EN ISO 23953), it delivers a professional, well-lit chilled merchandise run — with all refrigeration equipment housed remotely in a machine room or external plant. The glass door front maintains product temperature efficiently, minimises cold air loss to the sales floor, and gives customers a clear view of your full chilled range without the temperature impact of an open-front design.
Why Choose the 2500mm Glass Door Bay?
The 2500mm glass door multideck is the most versatile bay size in the VMAX range — large enough to anchor a serious chilled display wall, yet practical as a standalone unit. A 2,030L net volume and 4.38m² total display area accommodate a comprehensive product range across five shelves, with dual-zone LED lighting (roof and door frame) ensuring strong illumination throughout. Three evaporator fans maintain uniform temperature across the full 2500mm width, and the remote refrigeration connection gives your refrigeration engineer full flexibility to integrate this cabinet into a new or existing plant room circuit.
Key Features
- 2,030L net volume / 4.38m² TDA – measured to EN ISO 23953, Part 2, Annex A (5 shelves at 400mm)
- Glass door sealed front – maintains -1°C to +5°C with lower energy demand than open-front alternatives
- Remote refrigeration – direct expansion evaporator cabinet; connects to remote condensing unit via 9.52/15.88mm connections
- Off-cycle defrost – 6 cycles per 24h; 30-min maximum duration, 3-min drip time
- Evaporator fans – 3 × 6W for even air distribution across all shelf levels
- Dual-zone LED lighting – roof (4 × 16W) and door frame (10 × 13W) for full-bay illumination
- 5 adjustable shelves – 400mm depth, white; shelf loading to EN ISO 23953 standard
- Electronic thermostat – air-off probe; thermostat ON +5°C / OFF +3°C
- Climate Class 3 – rated for 25°C ambient / 60% RH operating environments
- End-walls not included – available separately to finish standalone installations or multi-bay runs
Technical Specifications
| Net Volume | 2,030L |
| Total Display Area (TDA) | 4.38 m² |
| Footprint | 1.90 m² |
| Temperature Range | -1°C to +5°C |
| Cooling Type | Remote (direct expansion evaporator) |
| Climate Class | 3 (25°C, 60% RH) |
| Defrost Type | Off-cycle, 6×/24h |
| Refrigeration Power Required | 2,129W |
| Cabinet Connections (in/out) | 9.52 / 15.88 mm |
| Evaporator Fan Motors | 3 × 6W |
| Roof Lighting | 4 × 16W LED |
| Door Frame Lighting | 10 × 13W LED |
| Fan Electrical Load | 18W |
| Lighting Electrical Load | 156W |
| Voltage / Frequency | 220–240V / 50Hz |
| Noise Level | ≤60 dB(A) |
| Thermostat Set Points | ON +5°C / OFF +3°C |
| Alarm Set Point | -5°C to +15°C |
| Weight (excl. end-walls) | 340 kg |
| Shelves | 5 × white, 400mm depth |
Dimensions
Length (excl. end-walls)
2500mm
Height
2200mm
Depth
760mm
Weight (excl. end-walls)
340 kg
This unit is a remote refrigeration cabinet and does not include a condensing unit or compressor. It requires connection to a separate remote condensing unit by a qualified refrigeration engineer. Please contact our team for advice on compatible plant room equipment.
Speak to Our Commercial Refrigeration Team
Remote multideck installations require careful planning — bay count, plant room sizing, refrigerant circuit design. Our team can advise on the full specification before you order, with trade prices and fast UK delivery as standard.
