Description

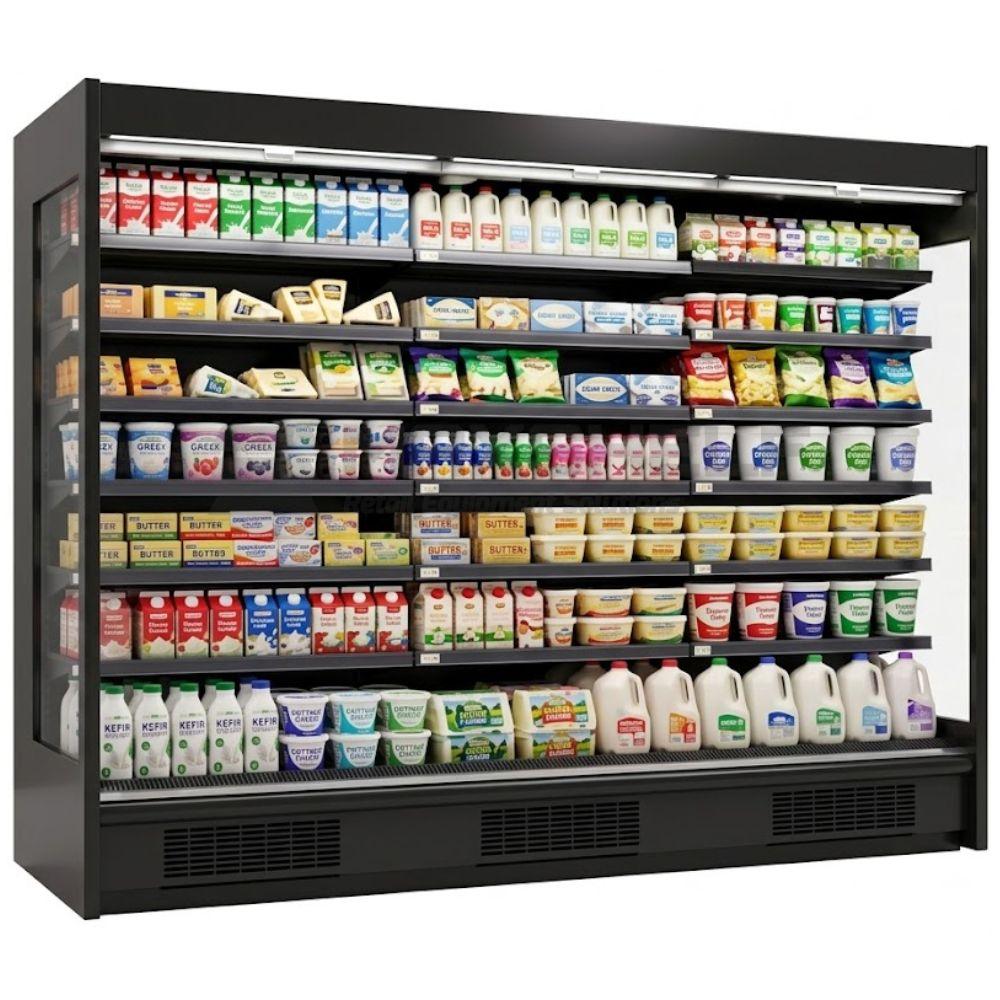

The VMAX Remote Multideck Open Chiller 2500mm is an open-front remote refrigeration multideck cabinet built for retailers who want to maximise product accessibility and shopper engagement across a chilled display run. At 2500mm wide with a 2,030L net volume and 4.38m² total display area (calculated to EN ISO 23953), it delivers a fully open, continuously accessible chilled merchandise display — with all refrigeration equipment housed remotely in a machine room or external plant. The open-front format removes the barrier between shopper and product entirely, driving faster pick rates on high-velocity chilled lines such as dairy, fresh produce, deli and chilled drinks.
Why Choose the 2500mm Open Multideck?
The 2500mm open multideck is the workhorse of the VMAX open range — large enough to carry a full chilled category, compact enough to position flexibly within a store layout. A 2,030L net volume and 4.38m² total display area provide serious merchandise capacity, while four evaporator fans maintain even temperature across the entire open-front bay without cold spots. Shelf-level LED lighting illuminates every product position directly, supporting strong impulse purchase performance across dairy, deli, fresh and chilled lines.
Key Features
- 2,030L net volume / 4.38m² TDA – measured to EN ISO 23953, Part 2, Annex A (5 shelves at 400mm)
- Open-front design – no doors; full, unrestricted shopper access at all times
- Remote refrigeration – direct expansion evaporator cabinet; connects to remote condensing unit via 9.52/15.88mm connections
- Off-cycle defrost – 6 cycles per 24h; 30-min maximum duration, 3-min drip time
- Evaporator fans – 4 × 13W for powerful, even air curtain across the open front
- Dual-zone LED lighting – roof (4 × 13W) and shelf-level (10 × 13W) for direct product illumination
- 5 adjustable shelves – 400mm depth, white; shelf loading to EN ISO 23953 standard
- Electronic thermostat – air-off probe; thermostat ON +5°C / OFF +3°C
- Climate Class 3 – rated for 25°C ambient / 60% RH operating environments
- End-walls not included – available separately to finish standalone installations or multi-bay runs
Technical Specifications
| Net Volume | 2,030L |
| Total Display Area (TDA) | 4.38 m² |
| Footprint | 1.90 m² |
| Temperature Range | -1°C to +7°C |
| Cooling Type | Remote (direct expansion evaporator) |
| Climate Class | 3 (25°C, 60% RH) |
| Defrost Type | Off-cycle, 6×/24h |
| Refrigeration Power Required | 3,871W |
| Cabinet Connections (in/out) | 9.52 / 15.88 mm |
| Evaporator Fan Motors | 4 × 13W |
| Roof Lighting | 4 × 13W LED |
| Shelf Lighting | 10 × 13W LED |
| Fan Electrical Load | 52W |
| Lighting Electrical Load | 190W |
| Voltage / Frequency | 220–240V / 50Hz |
| Noise Level | ≤60 dB(A) |
| Thermostat Set Points | ON +5°C / OFF +3°C |
| Alarm Set Point | -5°C to +15°C |
| Weight (excl. end-walls) | 240 kg |
| Shelves | 5 × white, 400mm depth |
Dimensions
Length (excl. end-walls)
2500mm
Height
2200mm
Depth
760mm
Weight (excl. end-walls)
240 kg
This unit is a remote refrigeration cabinet and does not include a condensing unit or compressor. It requires connection to a separate remote condensing unit by a qualified refrigeration engineer. Please contact our team for advice on compatible plant room equipment.
Speak to Our Commercial Refrigeration Team
Remote multideck installations require careful planning — bay count, plant room sizing, refrigerant circuit design. Our team can advise on the full specification before you order, with trade prices and fast UK delivery as standard.
