Description

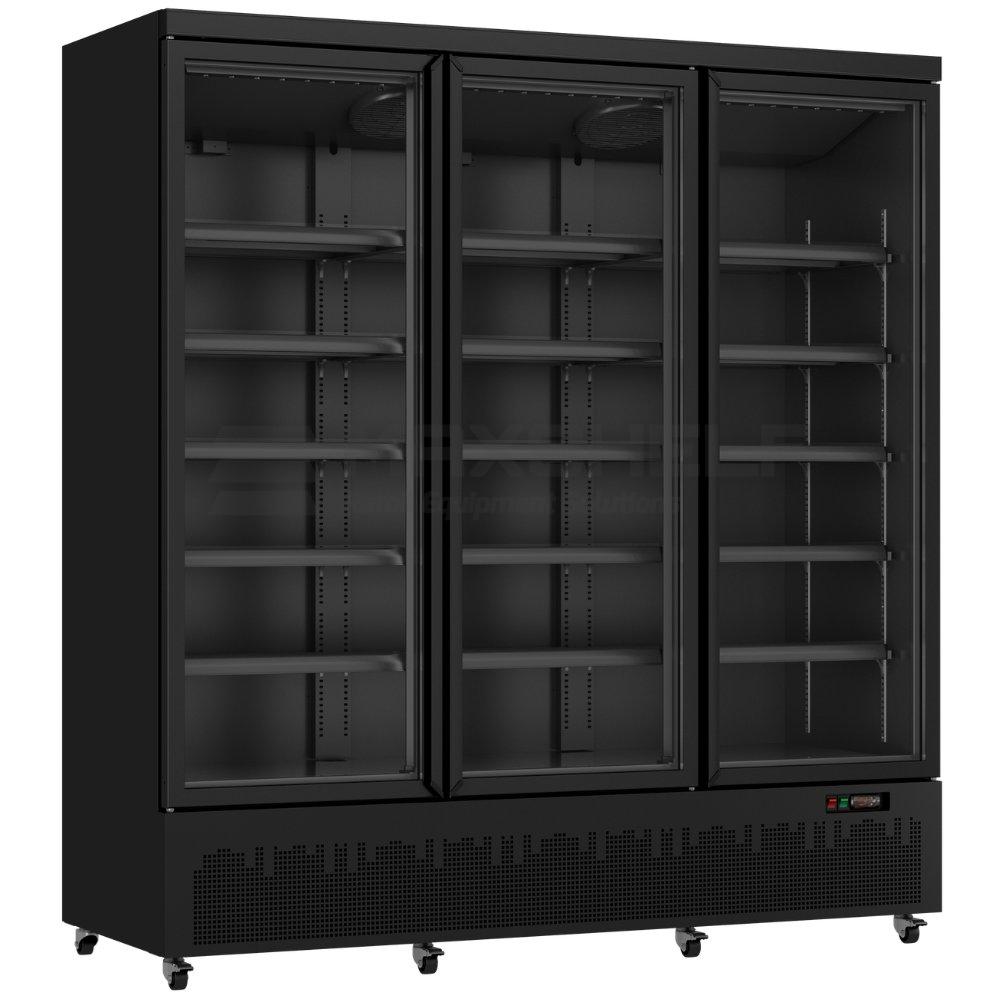

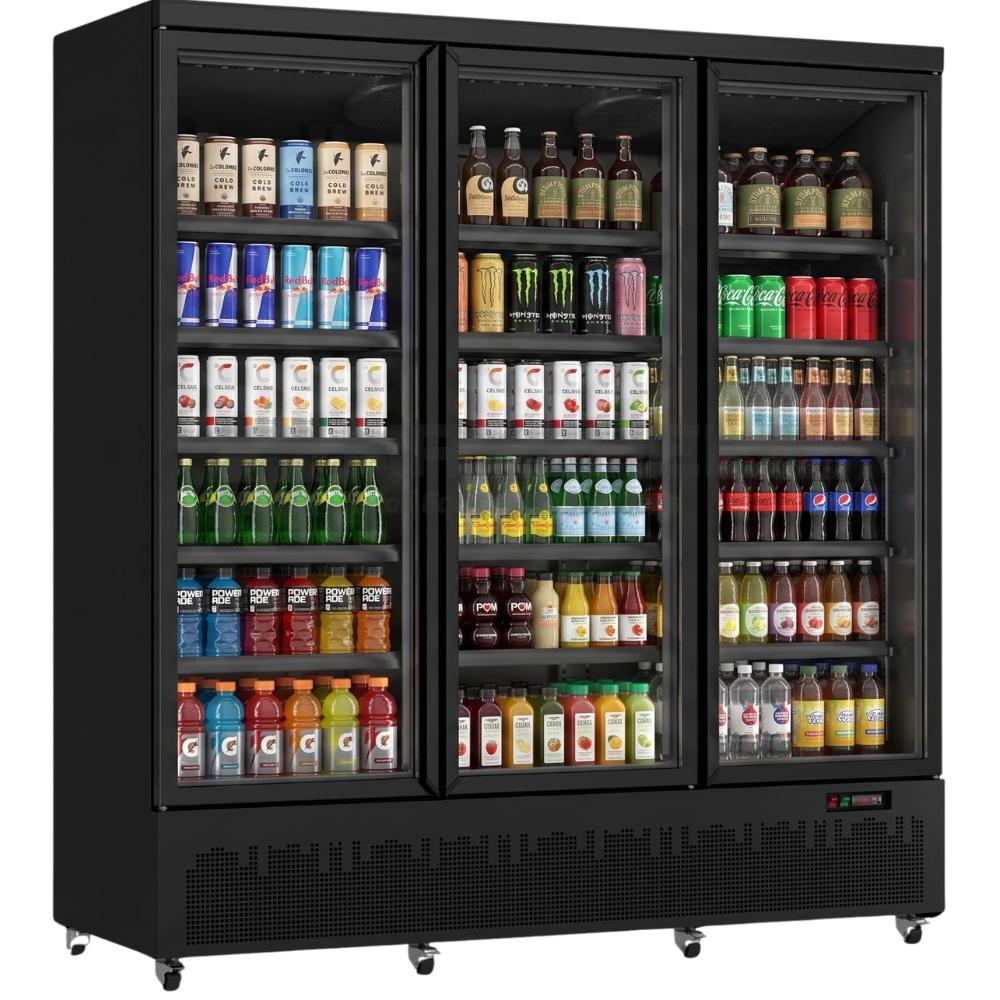

The VMAX Triple Door Upright Bottle Cooler is a large-format commercial chiller designed for high-throughput retail environments where chilled drinks form a core part of the offer. Spanning 1880mm wide with a 1602L net capacity, it delivers one of the most generous chilled display footprints available in a single freestanding unit — capable of holding 1,050 × 550ml bottles or over 2,100 × 330ml cans across 15 adjustable shelves. Three full-height glass doors — configured as two left-hand and one right-hand opening — give wide, flexible access to the entire cabinet for both customers and restocking staff.
Large-Format Cooling, Precision Controlled
Handling a larger cabinet demands a more capable cooling system, and the VMAX triple door delivers exactly that. A dual evaporator fan configuration distributes cold air evenly from front to back across all 15 shelf levels, preventing warm spots and maintaining a steady -1°C to +10°C product temperature even during peak trading hours when the doors are frequently opened. The self-evaporating defrost system eliminates the need for manual intervention, and the front-mounted electronic thermostat keeps temperature management simple for all staff. At Energy Class B, the unit balances its larger capacity with responsible energy consumption — a key consideration for operators running commercial refrigeration around the clock.
Key Features
- 1602L net / 1664L gross capacity – one of the highest-capacity single-unit bottle coolers available
- Dual evaporator fan system – even temperature distribution across the full cabinet width
- 15 white wire shelves – adjustable with 16mm wire spacing to suit any bottle or can format
- Triple LED canopy lighting – 12W × 3 / 9000–10000K for vivid, high-brightness product display
- 38mm price bars – white, without cover, across each shelf for clean shelf-edge labelling
- Three full-height glass doors – left-2 side-to-side opening; right door opens left for wide cabinet access
- Self-evaporating defrost – frost-free operation with no manual maintenance required
- Aluminium door frames with integrated handles – double-glazed, S-tempered glass; optional oval lock
- R290 refrigerant & cyclopentane insulation – low-GWP, environmentally responsible specification
- UK plug, 2m cord – CB/CE/ERP/ROHS/REACH certified; plug-in ready
Technical Specifications
| Capacity (Gross / Net) | 1664L / 1602L |
| Can Capacity (330ml) | 2,100 |
| Bottle Capacity (550ml) | 1,050 |
| Temperature Range | -1°C to +10°C |
| Cooling Type | Frost-free fan-assisted |
| Refrigerant | R290 / 120g |
| Defrost System | Self-evaporating |
| Compressor | Normal (non-inverter) |
| Temperature Control | Electronic thermostat (front grill) |
| Shelves | 15 × white wire, 16mm spacing |
| Input Power | 700W |
| Rated Current | 4.5A |
| Voltage / Frequency | 220–240V / 50Hz |
| Energy Class | B |
| Daily Energy Use | 5.44 kWh/24h |
| Noise Level | 61 dB |
| Canopy Light | 12W × 3 / 9000–10000K |
| Door Glass | Double-glazed, 3mm S-tempered, 25mm |
| Power Cord | UK plug / 2m |
| Certifications | CB / CE / ERP / ROHS / REACH |
Dimensions & Weight
External (W×D×H)
1880 × 710 × 2003 mm
Internal (W×D×H)
1790 × 595 × 1568 mm
Packed (W×D×H)
1920 × 750 × 2090 mm
Weight (Net / Packed)
207.5 kg / 235 kg
