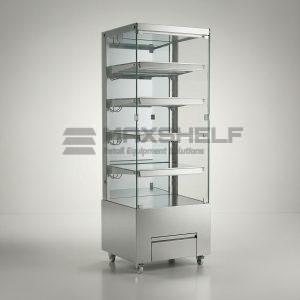

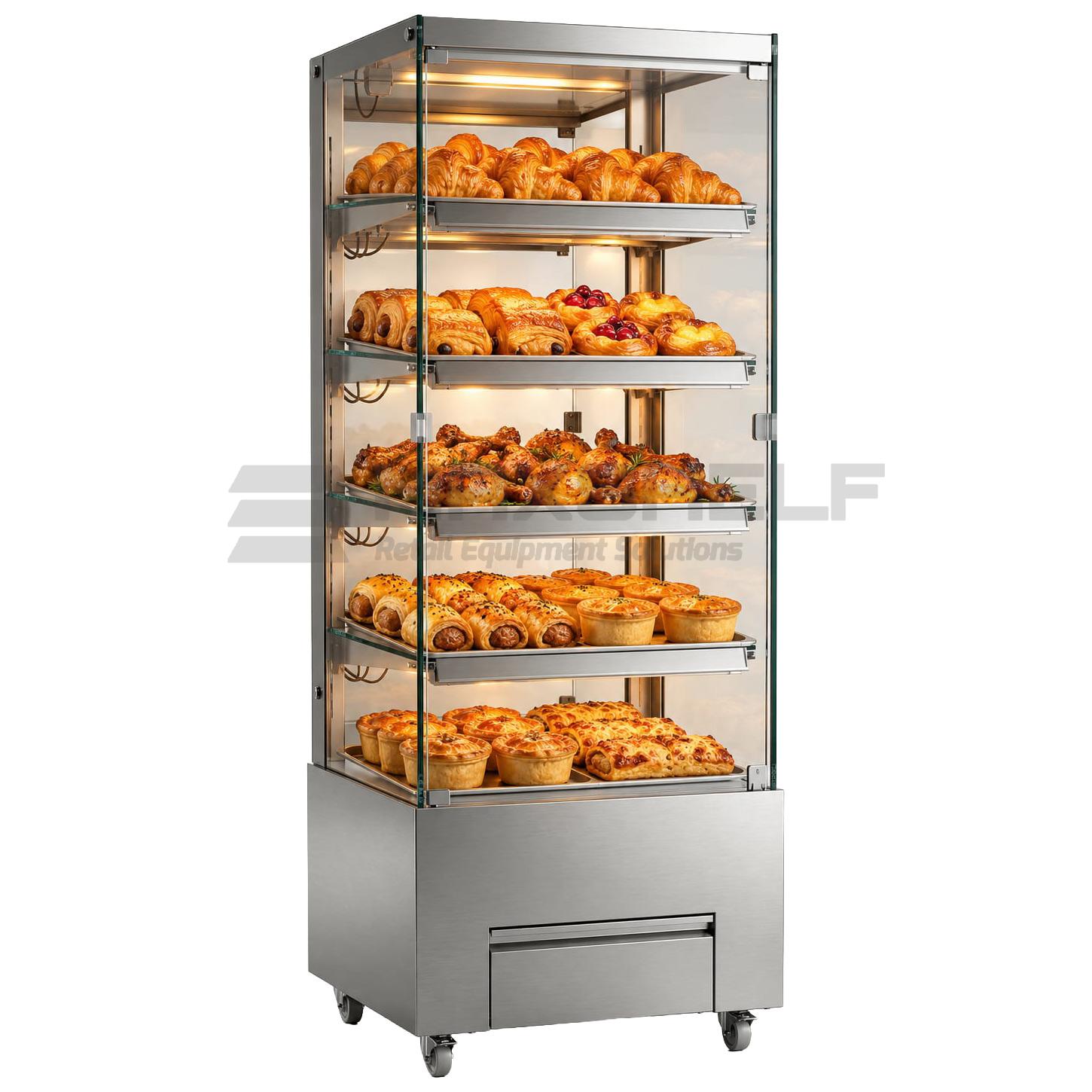

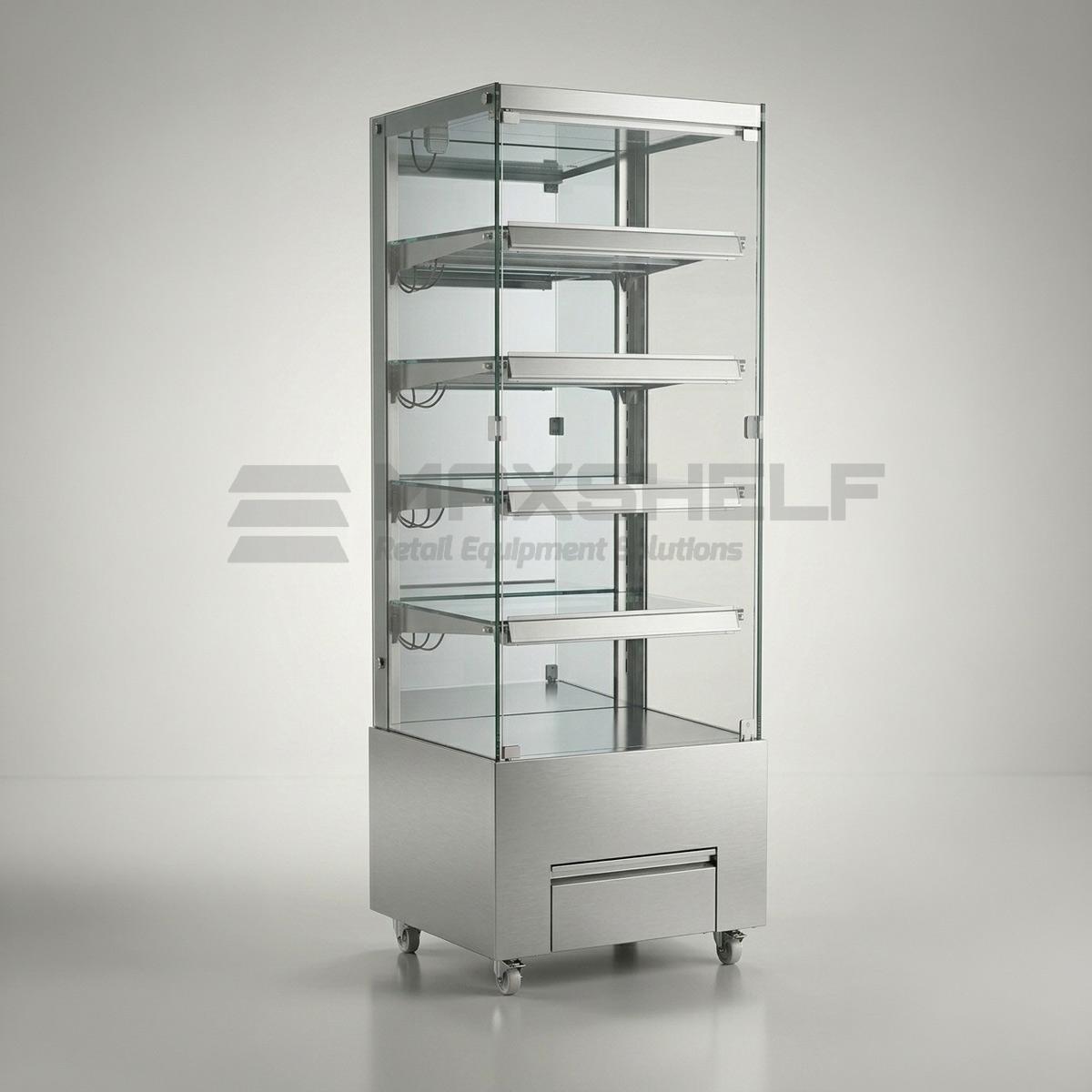

Heated Display Showcase Cabinet 4 Shelves

The Heated Display Showcase Cabinet is a tall, narrow hot holding unit built for food-to-go operations that need genuine capacity without the counter width a conventional heated cabinet demands. Four pull-out shelves sit above a heated base deck — five display levels in total, giving 2.23m² of display area and 319 litres net capacity within a cabinet just 624mm wide. Glass on all four sides with LED lighting beneath every shelf presents product from any approach angle, and an adjustable 30–90°C temperature range means a single cabinet can hold anything from warm pastries and viennoiserie at the low end through to rotisserie chicken, pies and hot savouries at full serving temperature.

A Temperature Sensor at Every Shelf Level

Most heated cabinets measure temperature at one point and assume the rest of the cabinet matches it. In a 1900mm tall unit that assumption fails: heat rises, so the top shelf runs hotter than the bottom and product at either extreme sits outside its ideal holding window.

This cabinet is specified differently. Five separate temperature detectors — one per display level — feed a digital temperature controller that regulates each zone independently. Combined with carbon fibre heating tubes, which deliver even radiant heat rather than the hot spots a conventional element produces, the result is consistent holding temperature from the base deck to the top shelf. For an operator running different product types on different shelves, that control is the difference between a cabinet that works and one that dries the top shelf out by lunchtime.

Pull-Out Shelves and Four-Sided Glass

The four shelves pull out on runners rather than being fixed — meaning a full tray can be loaded at the bench and slid into position, and a depleted shelf can be drawn forward for restocking without reaching deep into a hot cabinet. It is a small design detail that materially affects how quickly staff can turn the display around during a service rush.

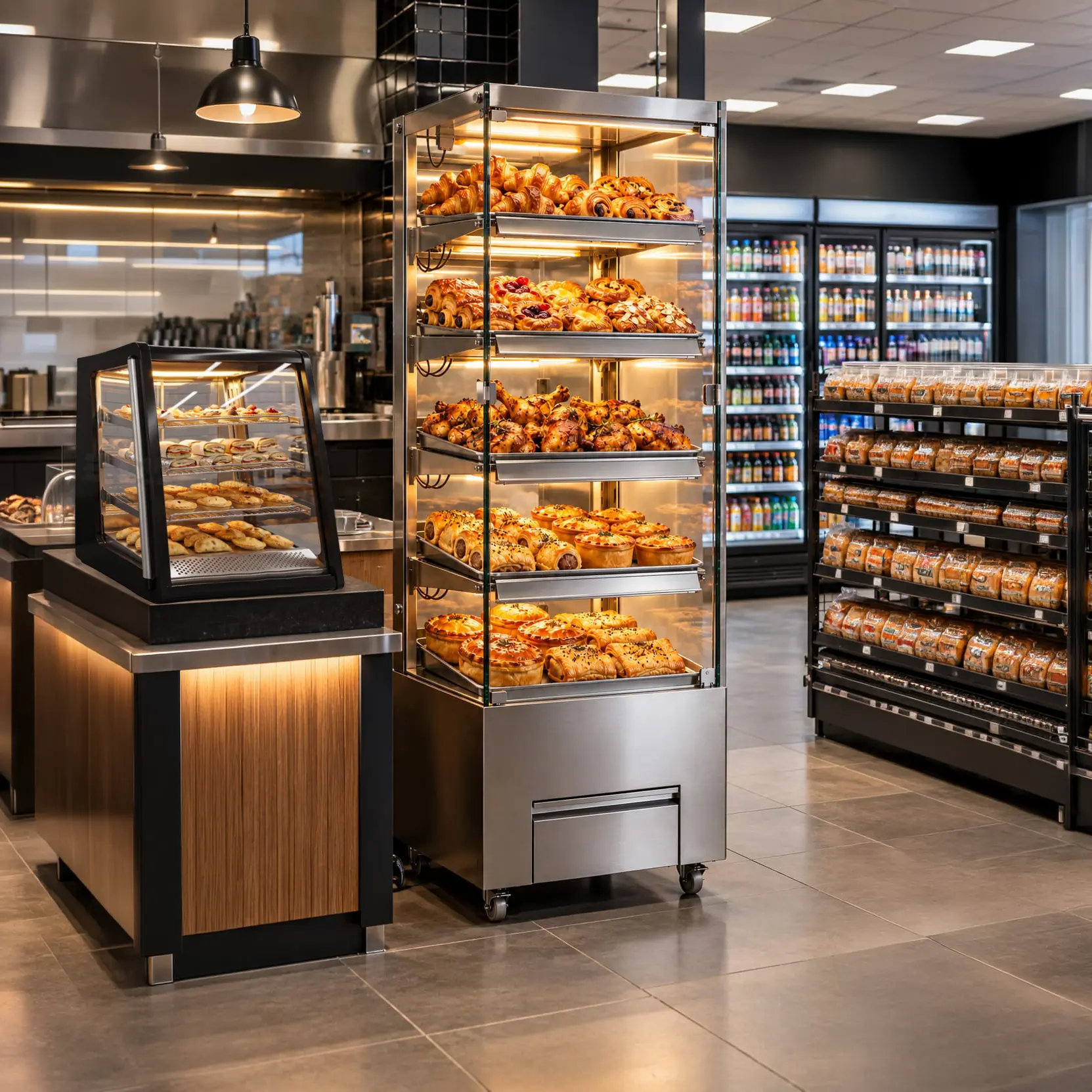

Glass on all four sides means the cabinet works as an island as readily as against a wall. Positioned at the end of a counter or in the middle of a food-to-go area, product is visible to customers approaching from any direction — and with LED strips beneath every shelf, the product on each level is lit directly rather than relying on light falling from above.

Key Features

• ✔ 30–90°C adjustable temperature range – covers warm pastries through to rotisserie and hot savouries at full serving temperature
• ✔ 5 temperature detectors – one per display level, feeding a digital controller for consistent holding top to bottom
• ✔ Carbon fibre heating tubes – even radiant heat distribution without the hot spots of conventional elements
• ✔ 4 pull-out shelves + heated base deck – 5 display levels; load trays at the bench and slide them in
• ✔ 2.23m² display area / 319L net capacity – substantial hot holding volume from a 624mm wide footprint
• ✔ Four-sided glass – works as a wall-side or island unit; product visible from every approach angle
• ✔ LED lighting beneath every shelf – each level lit directly rather than relying on light from above
• ✔ Dual thermal cut-out protection – self-resetting and non-self-resetting safety cut-outs on the heating circuit
• ✔ Stainless steel inside and out – hygienic, hard-wearing finish throughout; easy to clean down
• ✔ IPX4 rated – protected against water splashing from any direction; suitable for wash-down environments
• ✔ Castor base – reposition the cabinet for cleaning or layout changes without lifting
• ✔ Climate Class 4 – rated to perform in ambient conditions up to 30°C at 55% RH
• ✔ Separate lamp switch – run the lighting independently of the heating function

Technical Specifications

Dimensions & Weight
